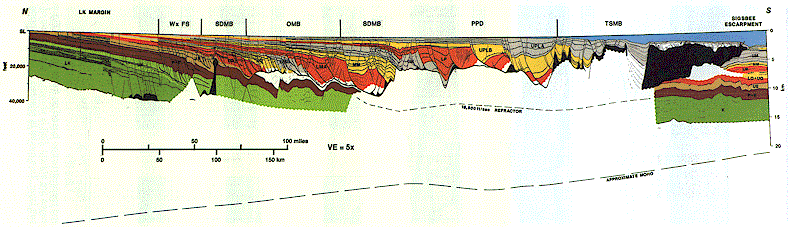

Figure 32-Five times vertically exaggerated frame section (showing only reliable correlations and observed seismic geometries) across western Louisiana, from the Lower Cretaceous margin to the abyssal plain. A true-scale section is shown in Figure 35. Salt is shown in black. WxFS = Wilcox fault system, SDMB = salt dome-minibasin province, OMB = Oligocene-Miocene detachment province, PPD = Pliocene-Pleistocene detachment province, TSMB = tabular salt-minibasin province, LK = Lower Cretaceous, UK = Upper Cretaceous, P-E = Paleocene-Eocene, UE = upper Eocene, LO = lower Oligocene, UO = upper Oligocene, LM, LMB, LMA = lower Miocene, MM = middle Miocene, UM = upper Miocene. See Figure 2 for location.
