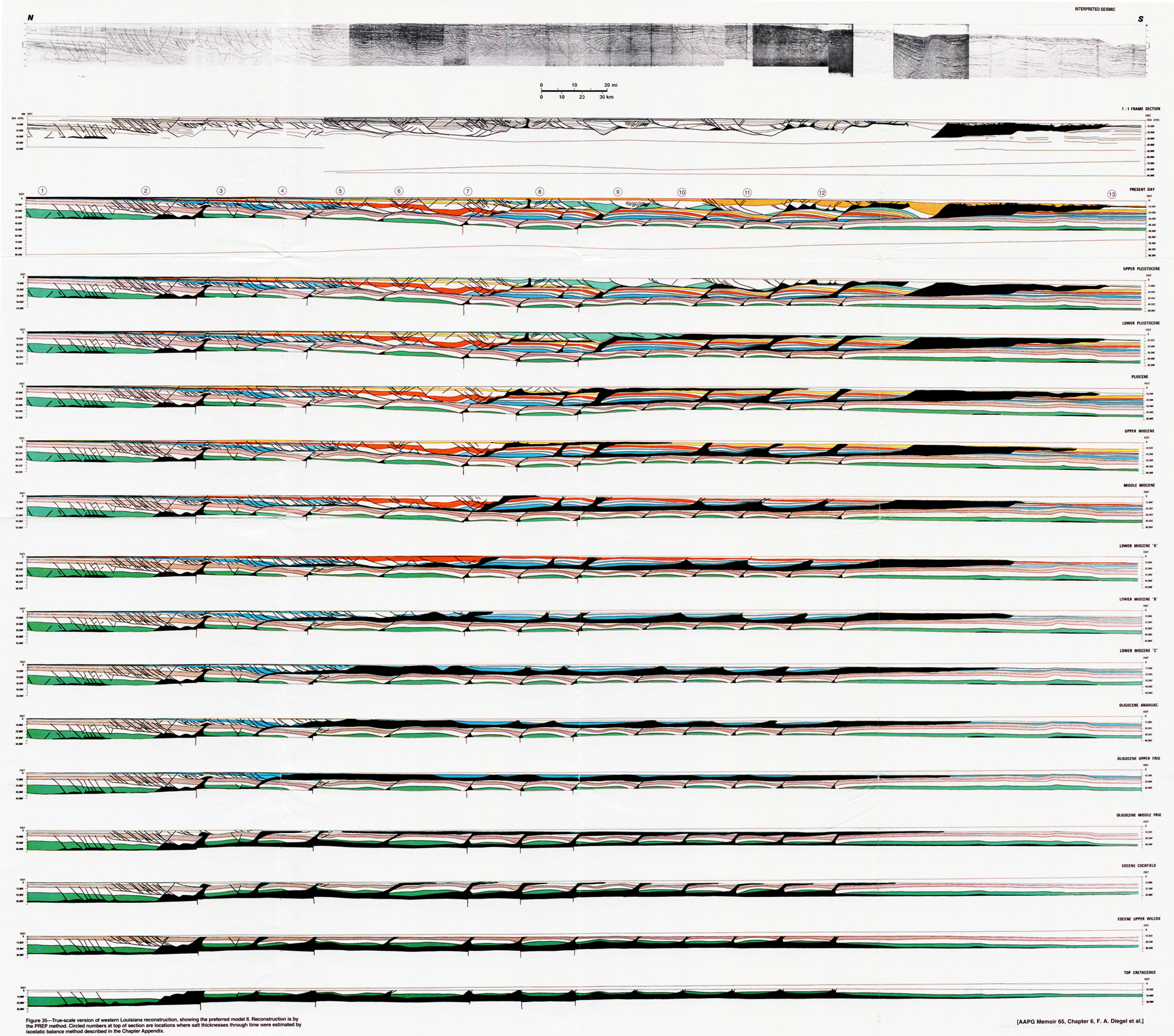

Figure 35-True-scale version of western Louisiana reconstruction, showing the preferred model II. Reconstruction is by the PREP method. Circled numbers at top of section are locations where salt thicknesses through time were estimated by isostatic balance method described in Chapter Appendix.

This image, because of its size, must be viewed in parts both vertically and laterally.

To view animation of selected stages of the reconstruction, click here.
