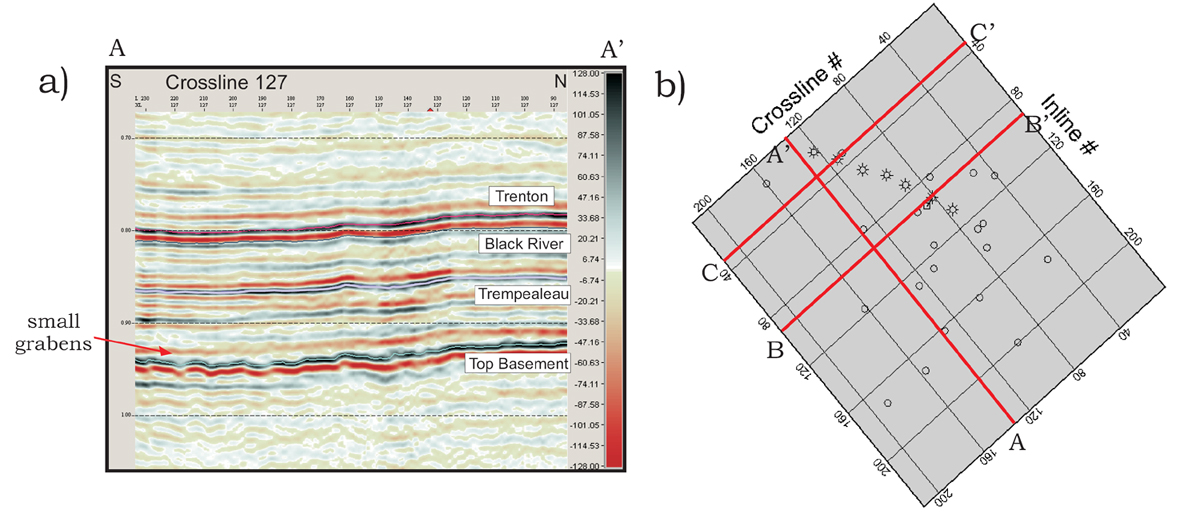

Figure 4. a). Sample seismic line with horizon picks shown. Note the small grabens in the basement in the south of the survey and the higher structure to the north. b). Base map for Saybrook, with the cross sections for Figures 7 and 17 shown.
