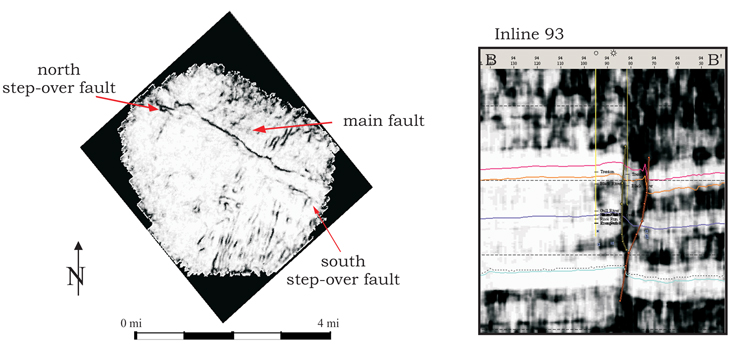

Figure 7. a). Stratal slice through the coherency volume 18ms above the Top Basement horizon, with highly coherent reflections shown in white and less coherent in black. The sinuous nature of the basement fault can be seen, along with the step-over faults to the north and south. b). Inline 93 is a transect through one of the positive flower structures that was mapped.
