Value
of Applied Research and Future of Natural Gas Supply:
How the U.S. Natural Gas Production Curve Was Built
and How It Will Be Sustained in the Future
Scott W. Tinker and Eugene M. Kim
Bureau
of Economic Geology
The University of Texas at Austin
This article, which is posted also at Bureau of Economic Geology’s website, http://www.beg.utexas.edu, represents a combination of two talks given by the authors--The Value of Upstream Technology and the Future of Applied Research, by the senior author in the period from October, 2000, to June, 2001, and U.S. and Texas Gas Supply: Where We Are Now and Where We Are Headed? by both authors in February, 2001. Appreciation is expressed to B.E.G. and to Dr. Tinker for permission to present the article here.
|
tProduction as a Metric for Research Value tMeeting Future U.S. Energy Demand
tProduction as a Metric for Research Value tMeeting Future U.S. Energy Demand
tProduction as a Metric for Research Value |
Natural gas is the energy of choice for the next 15 to 20 years. Data show that Federal and private investment in research, and the creative application of technology helped build the historical natural gas production curve in the United States. Research and the creative application of technology will likewise grow natural gas production and slow oil production decline in the future. The private energy sector has decreased fossil energy research funding significantly over the past decade. The American public must get behind Federal support of fossil energy research if we are to avoid dependence on foreign sources of natural gas. The private sector can also be proactive by creating a Private Energy Research Foundation (PERF) to help fund vital fossil energy research.
Technology is a word that has become so overused that it actually means very little without some context. A geologist might think of 3-D models, a petrophysicist, logging tools, a geophysicist, waves, a reservoir engineer, numerical simulation, an operations engineer, drilling and completions, and a manager might consider the leverage that technology provides on Wall Street. The word means many things to many people. In fact, all of these definitions are important, all are correct, and all are useful within a known context. One thing is certain: technology does not equal wisdom, and technology alone does not add value. A company needs both profit and value to survive over the long run. I consider value to be a longer-term attribute than profit, which carries a fiscal quarter connotation. In the descriptive, interpretive, research-oriented upstream-upstream world of the geologist, geophysicist, and petrophysicist, it is considerably more difficult to quantify value than in the quantified, blueprint, application-oriented downstream-upstream world of the operations engineer (Figure 1). Value is difficult to quantify in the upstream-upstream, and it is therefore difficult to assign, because it is far removed from the point where oil fills the tank and gas fills the pipeline. The resulting mistake that is commonly made is to consider the upstream-upstream a cost. I call this the value trap. Many major oil companies fell into the value trap over the past decade when they asked their Research Centers to become Technology Centers, which in the end meant 100% technical service and very little innovative research. Technology Centers were asked to justify their existence using a quarterly profit metric. In fact, scientists at Technology Centers were asked to "bill out" to customers within the company at some hourly or daily rate. Lawyers and accountants perform a service and quantify value by billable hours; research scientists should not. One is service, the other is science. To those of us who were in the science trenches at major Technology Centers, the result was predictable. Based upon the billable-hour metric, Centers were shown to be unprofitable, and a vast majority were closed. There were, of course, other business justifications for closing Technology Centers. For example, "does not fit the strategic objectives of the company," "technology should be borrowed not invented in house," and "we should contract the technology as needed." Time will tell the wisdom of these decisions. In actuality, true research is represented by long periods of normalcy with no apparent progress or results, which are punctuated by moments of brilliance and significant breakthrough. As such, research does not lend itself to quarterly profit evaluation. In fact, today's research often becomes tomorrow's technology application. An oil company could certainly not be profitable with research alone, but can it be valuable without it? Quantifying the value of research is an age-old dilemma. What is the value of knowing that seismic amplitude reflectors and depositional time lines are not always synonymous (Figure 2)? What is the value of quantifying and visualizing the physical forward model that produced complex salt tectonics (Figure 3)? What is the value of very rapid acquisition of topographic data and mapping with sub-meter vertical accuracy (Figure 4)? What is the value of 3-D visualization and of the virtual reality presentation of data to landowners in South Texas (Figure 5)? What is the value of mapping the salinization variations of soil and ground water around oil fields using a very rapid-acquisition airborne electromagnetic device (Figure 6)? What is the value of immediate access to 1.5 million boxes of cores and cuttings (Figure 7)? Most industries recognize the importance of technology and innovation (Figure 8) as a source of superior shareholder returns (Figure 9), as leverage in partnership negotiations, in differentiating themselves from competitors, and as a source of long-term corporate value. It is, therefore, somewhat of a paradox that oil company research and development (R&D) expenditures have been steadily decreasing for a decade (Figure 10). Part of the explanation for this decrease in R&D can be found in the increase in joint industry projects (JIP's) over the past decade (Figure 10). Increased collaboration can help the bottom line from a short-term cost perspective but may hurt it from a longer-term value perspective. |
|
tProduction as a Metric for Research Value tMeeting Future U.S. Energy Demand
tProduction as a Metric for Research Value tMeeting Future U.S. Energy Demand
tProduction as a Metric for Research Value tMeeting Future U.S. Energy Demand
tProduction as a Metric for Research Value |
Figure Captions--Production as a Metric for Research Value
Production as a Metric for Research Value Until the late 1800's, wood was the primary source of energy in the United States (Figure 11). Coal became an important energy source in the late 1800's and dominated the energy scene until the mid-1920's, when oil and gas became an important alternative to coal. By 1950, oil and natural gas combined had surpassed coal in terms of energy consumption, and they have dominated the energy consumption scene ever since. Today, with the exception of nuclear power, demand for every major source of energy in the United States is increasing. In terms of supply, coal is still the largest source of energy produced in the United States, followed by natural gas and crude oil (Figure 12). The University of Texas owns oil and gas royalty rights to approximately 2.1 million acres in the Permian Basin of West Texas. Oil production from these lands has been steadily decreasing for the past two decades (Figure 13). There are two "humps" in the oil production decline, one in the mid-1980's and one in the late 1990's, that combined represent more than 10 million barrels of incremental oil (production above the decline). What was the cause of the two humps? One possibility is that the humps are related to exploration and development driven by oil price. However, oil price data indicate that the 1980's hump occurred during a price fall, the 1990's hump occurred during a price rise, and there was a complete price cycle in the mid-1990's that had no impact on University Lands oil production (Figure 14). Another possibility is that University Lands oil production is related to larger scale production cycles, driven by a complex set of global economic factors. One proxy for these larger scale cycles is oil production from all of Texas. In fact, the mid-1980's oil hump on University Lands does mirror the oil production in Texas, both falling in 1986 with the global price decline

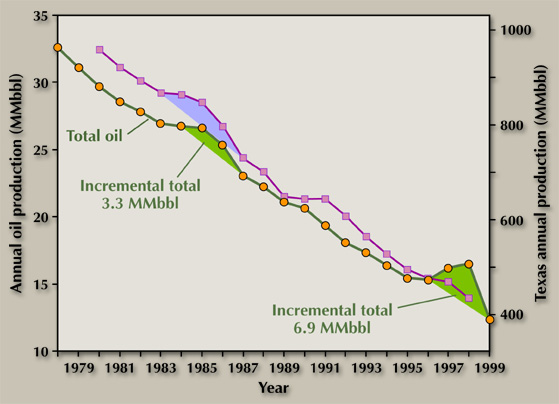

(Figure 15). However, the 1990's hump on University Lands occurred when Texas oil production did very little, and there is a hump in Texas oil production in the mid-1990's related to the oil price cycle

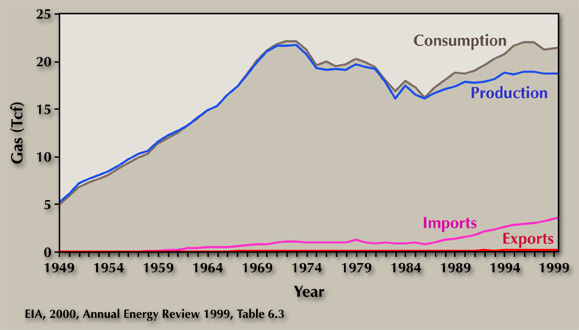

(Figure 14) that has no University Lands equivalent. Natural gas production in the United States was able to keep pace with consumption until the mid-1980's (Figure 19). Natural gas imports have risen from around 4% in the mid-1980's to more than 15% today (Figure 20). More than 3 Tcf of gas was imported in 2000, and that number is not anticipated to decrease. A large percentage of the U.S. imported pipeline natural gas comes from Canada. Liquefied natural gas (LNG), largely from Algeria and Trinidad (Figure 21), accounts for most of the remaining natural gas imports. Forecasts for annual U.S. natural gas production indicate natural gas supply will grow from 21 Tcf in 2001 to around 27 Tcf by 2015. Demand is projected to exceed 30 Tcf by 2015 (Figure 22). Whereas most of the U.S. natural gas to date has come from associated, high-permeability, and shallow offshore sources, around 50% of the produced natural gas in 2015 is forecast to come from deepwater, subsalt, and unconventional (tight gas, shale gas, and coalbed methane) sources. Analysis of historical Federal and State exploration incentive programs and Federal and private investment in unconventional natural gas research indicates that the supply curves benefited greatly from natural gas research and the successful application of technology. The tight gas production curve shows a large positive increase in slope in 1985 following $165 million of combined investment in research by the DOE and GRI (Figure 23). Studies were focused on advanced stimulation technology, the greater Green River Basin, and the Piceance Basin. Combined with Federal and State tight gas production incentives, and investments in exploration and production by private sector operators, these investments in research have produced 11 Tcf of incremental natural gas to date. The shale gas production curve shows a large positive increase in slope also in 1985 following more than $90 million of investment in research by the DOE in the prior decade (Figure 24). Another surge in production from shale gas followed $6 million of additional investment by GRI beginning in 1990. Studies were focused on the Antrim shales and the Appalachian Basin shales. Combined with investments in exploration and production by private sector operators, these investments in research have produced more than 2 Tcf of incremental natural gas to date. The coalbed methane production curve shows a large positive increase in slope in the late 1980's following $82 million of combined investment in research by the DOE and GRI in the preceding decade (Figure 25). Combined with Federal and State production incentives, and investments in exploration and production by private sector operators, these investments in research have produced nearly 5 Tcf of incremental natural gas to date, and show no evidence of slowing as coalbed methane expands its productive horizons to Texas. To summarize, Federal and State production incentives, combined with tight gas, shale gas, and coalbed methane research, funded largely by the U.S. Department of Energy (DOE: $240 million over 25 years), the Gas Research Institute (GRI: $140 million over 20 years), and the private energy sector, resulted in nearly 18 Tcf of incremental gas production from 1970 through 2000. Investment in research had a positive economic value. |
|
tProduction as a Metric for Research Value tMeeting Future U.S. Energy Demand
tProduction as a Metric for Research Value tMeeting Future U.S. Energy Demand
tProduction as a Metric for Research Value |
Figure Captions--Meeting Future U.S. Energy Demand & Energy Research
Meeting Future U.S. Energy Demand Production Oil imports have exceeded U.S. domestic oil production since 1994, and the ratio of imported to produced oil will grow in the future. However, the world is moving progressively away from heavy carbon energy such as coal and oil to cleaner fuels such as natural gas and hydrogen. This is good news for the environment but will place a tremendous burden on the supply of natural gas in the United States. Part of the U.S. natural gas supply will continue to be satisfied by imported natural gas from Canada. Although Mexico currently consumes an order of magnitude less natural gas than the United States (<2 Tcf vs. >21 Tcf), demand for natural gas in Mexico is forecast to increase considerably over the next decade. Several of the Gulf onshore basins in Mexico, including Burgos, Veracruz, and Macuspana, and the underexplored Mexico offshore have high natural gas potential. However, because demand for natural gas within Mexico is growing dramatically, it is unlikely that Mexico will become a net exporter of natural gas to the United States in the short or mid term. To fill the demand gap, imported LNG must continue to rise over the next decade. The United States is facing a very real energy problem. For the past century, the people of the United States have enjoyed, and actually come to expect, very inexpensive fossil energy. This cheap energy is the direct result of a century of technological advancements developed by the private energy industry, with limited Federal support. Inexpensive fossil energy has allowed the United States to become the most technologically advanced, wealthiest nation on Earth. During this time of cheap energy, the general public has come to believe that Federal support of energy research is a form of "corporate welfare." This idea is absurd. In fact, just the opposite is true: the United States has been on "energy research welfare" provided by the private sector for nearly a century. The major oil companies, who have been serving up the energy research "soup," have all but closed the soup lines. The private energy sector has nearly eliminated the once-great private research and development laboratories, and R&D expenditures are half of what they were a decade ago (Figure 27). This is in part because of increased collaboration (Figure 10) and in part because there are fewer companies than there were 10 years ago. John Rockefeller must be smiling (Figure 28)! GRI, now called GTI, is no longer passing through funds for natural gas E&P research, and the Department of Energy is funding limited gas research externally and internally at the National Energy Technology Laboratory (NETL), but not at levels necessary to support future reserve replacement and reserve growth needs. The mega-merger frenzy has resulted in several market realities. There has been a significant reduction in earth scientists and petroleum engineers over the past decade, resulting in very "lean" technical staff within each company. Graduate students in universities have recognized this shrinking job market and are now choosing other disciplines. Finally, there has been an extreme divergence in "economic class" between the super-majors and everyone else, which is unhealthy for the long-term survival of the industry. The American people must make a decision regarding fossil energy: Either invest in energy research with Federal funding, including DOE and NSF, results of which would support the independent producers in the country so that growing natural gas demand can be meet with U.S. supply, or do not invest, and become dependent upon foreign sources of natural gas, just as we have with oil. In addition to Federal investment in fossil energy research, the private sector also has a choice: proact or react. I recommend a proactive position and the establishment of a Private Energy Research Foundation (PERF), modified after the Brazilian and French approaches to funding energy research. Key elements of PERF: Key benefits of PERF: Research and the creative application of technology helped build the oil and natural gas production curves in the United States. Research and technology will grow the natural gas production and slow the oil production decline in the future. Research and applied technology have long-term value that is significantly greater than the initial investment. The United States has an energy problem. The American public must recognize the positive safety and environmental record the oil industry has built in the past 10 years, and they must get behind Federal support of fossil energy research if we are to avoid dependence on foreign sources of natural gas. The private sector can be proactive by creating a Private Energy Research Foundation (PERF) to help fund vital energy research. Energy Information Administration, 2000, Annual Energy Review 1999. Energy Information Administration, 2000, National Gas Monthly, August 2000. Kim, E. M., Tinker, S. W., Fisher, W. L., and Ruppel, S. C., 2000, Benefit/cost analysis of GRI's gas supply research initiative: economics of a gas supply research trust fund to increase gas production of Federal lands: The University of Texas at Austin, Bureau of Economic Geology, final report prepared for Gas Research Institute, 70 p. |
