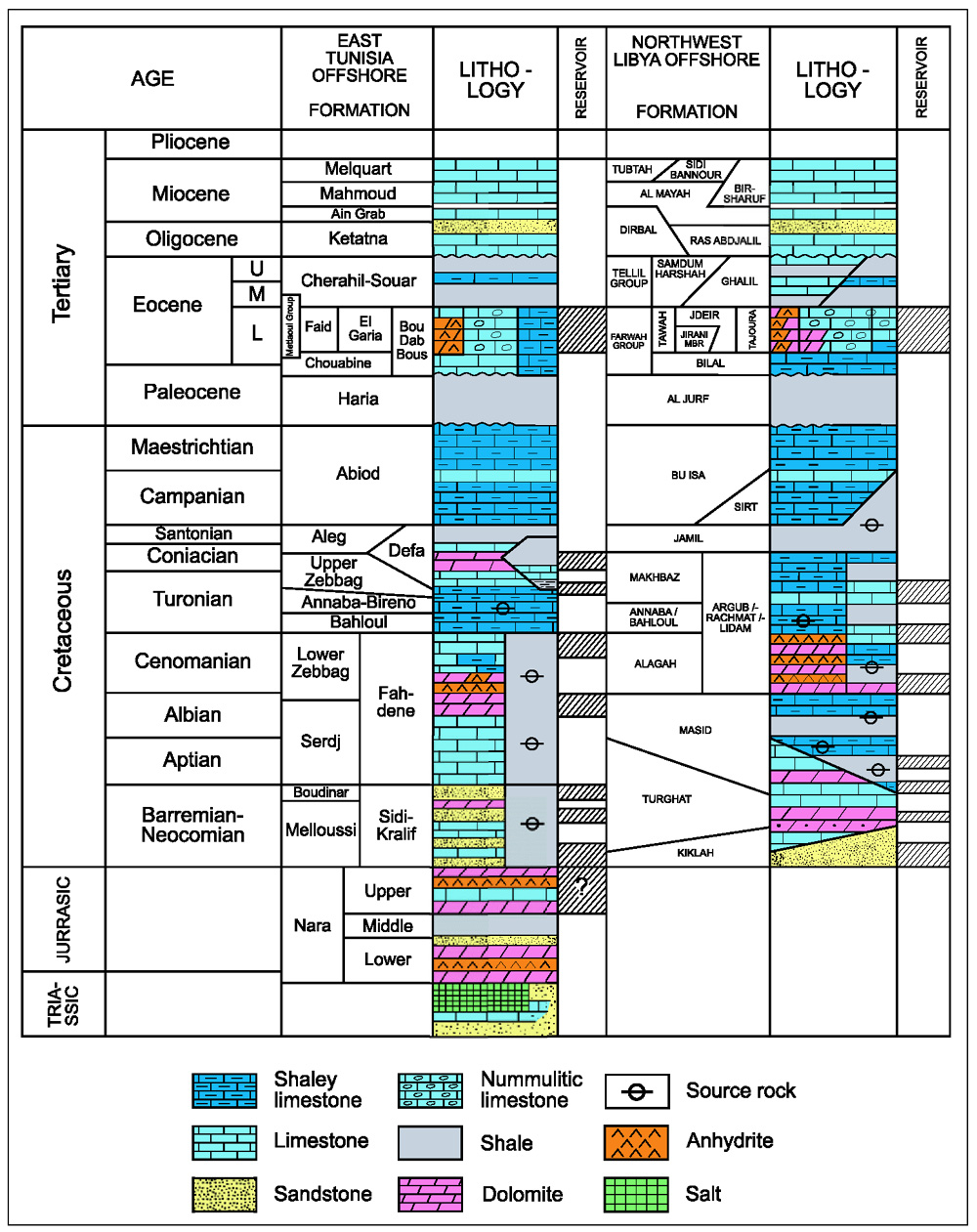

Figure 18. Stratigraphic correlation chart of formations and generalized lithologies of northwest offshore Libya and south offshore Tunisia. Also shown are the main reservoir and source units. Modified from Bishop (1988), Bernasconi et al. (1991), Sbeta (1990), and El-Ghoul (1991).
