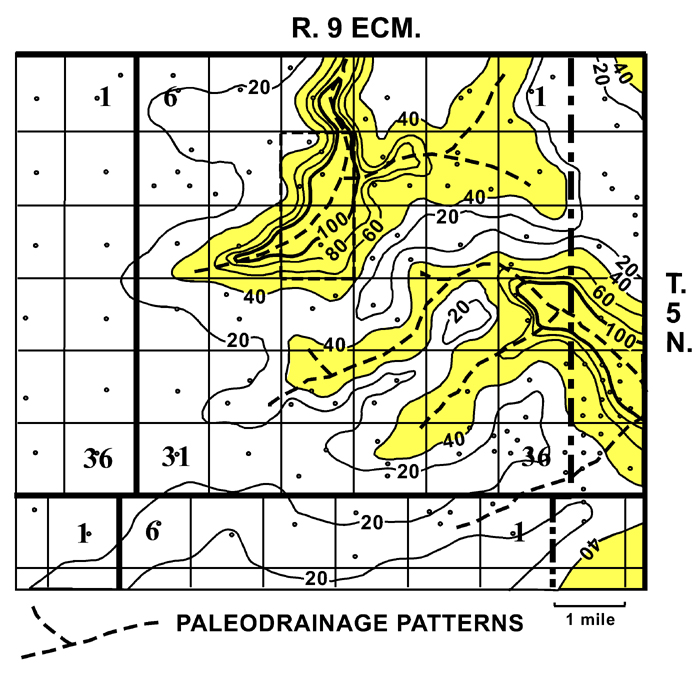

Figure 7.  Net Keyes sandstone thickness map that delineates paleodrainage patterns on the underlying eroded Mississippian surface. Net sandstone exceeds 100 ft (30 m) in paleovalleys. A disposal site in the thick Keyes trend in Sections 9 and 16 has a calculated injectate capacity exceeding 21 million barrels.
