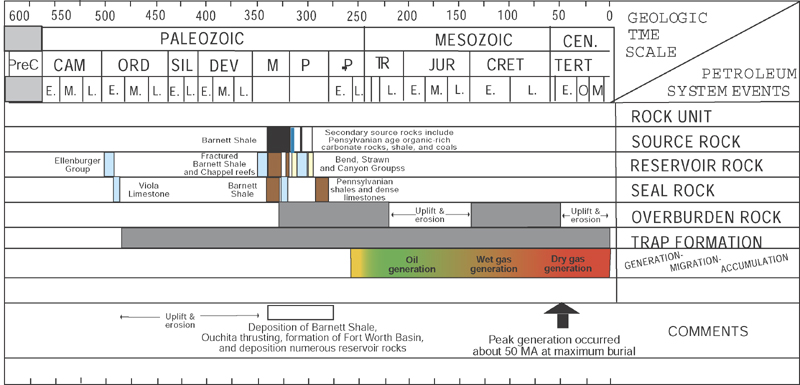

Figure 5.  Events chart for Mississippian-Pennsylvanian Barnett-Paleozoic Total Petroleum System (TPS) of the Bend Arch-Fort Worth Basin Province, Texas, showing TPS elements and timing of trap formation and hydrocarbon generation. Also see stratigraphic chart of Figure 4.  Hydrocarbon generation models were summarized and modified from Jarvie et al. (2001).
