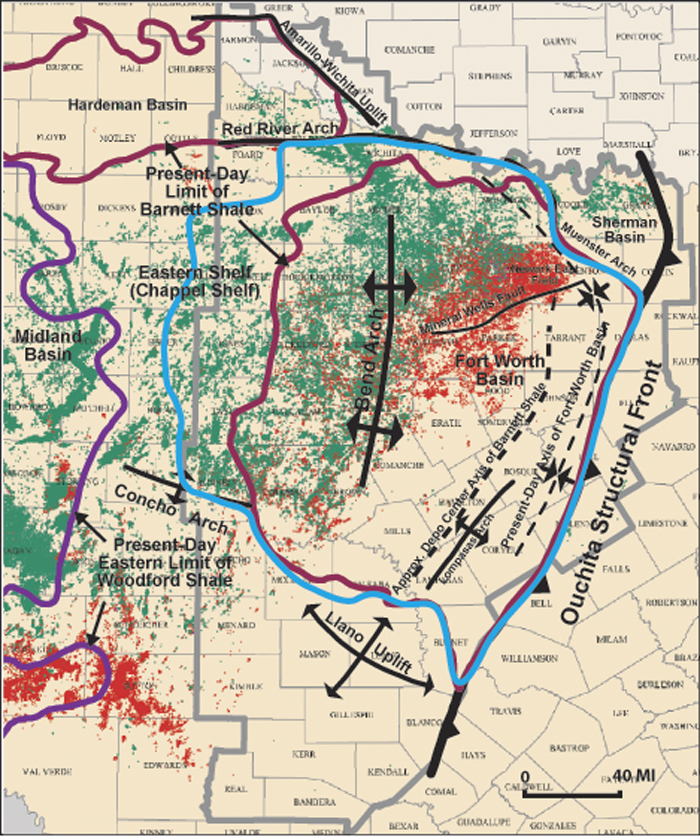

Figure 3.  Map showing major structural elements (black lines), oil (green dots) and gas (red dots) well production, location of Newark East Field, and boundary of USGS Bend Arch-Fort Worth Basin Province (gray line).  Red lines show present-day limit of Barnett Shale (Mapel et al., 1979) and purple lines are eastern limit of Woodford Shale (Comer, 1991).  Blue line approximates the boundary of the Barnett-Paleozoic Total Petroleum System.
