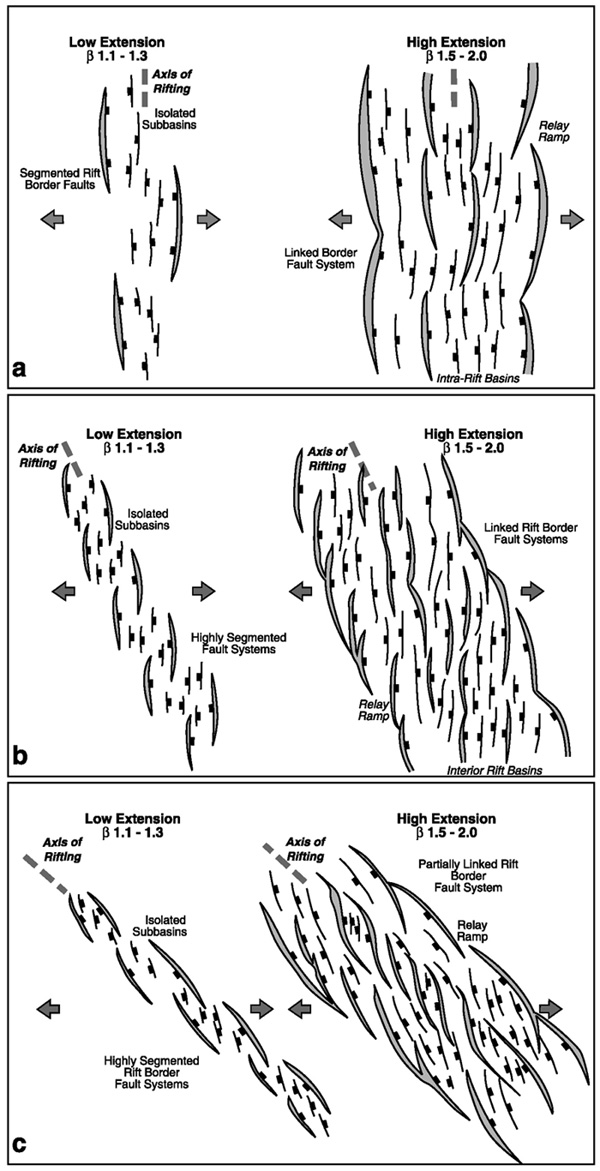

Figure 15. Conceptual extensional fault patterns for orthogonal and oblique rift systems. These patterns are based partly on results of analog models described in this article, as well as our studies of natural rift systems. (a) Orthogonal rift fault systems. (b) Moderately oblique rift fault systems. (c) Strongly oblique rift fault systems.
