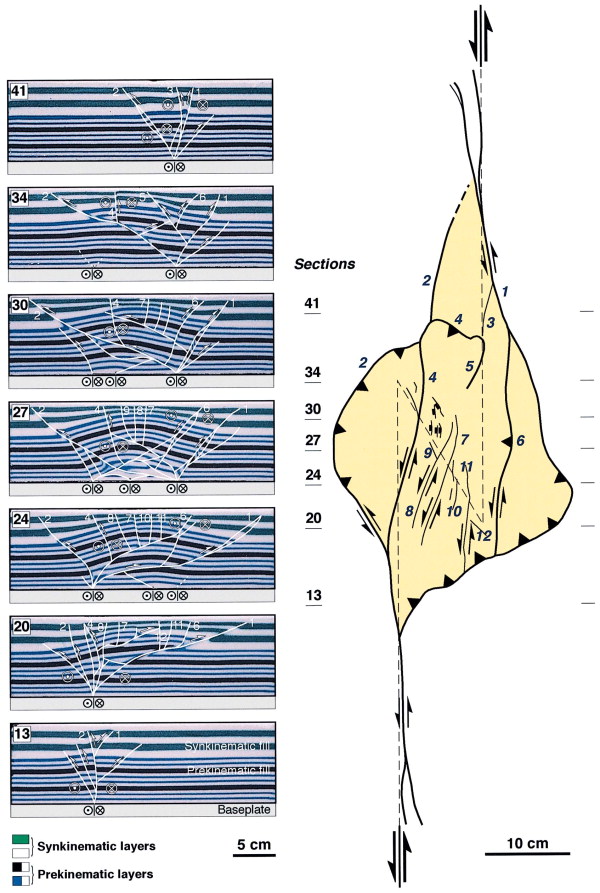

Figure 15. Serial vertical sections and a line diagram of the surface of experiment W325 after 10 cm sinistral strike-slip displacement on the basement fault system. Fifty serial sections were cut at 1 cm intervals across the model. Faults are numbered to permit correlation between the plan view diagram and the vertical sections.
