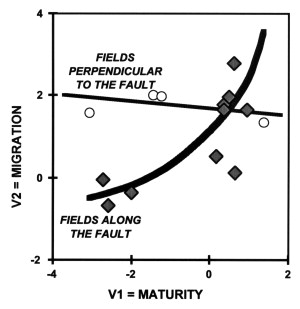

Figure 17--PCA (principal component analysis) representation for gases from the southern part of the Recôncavo basin. The gases perpendicular to the Mata Catu fault exhibit a pure maturity trend, whereas the gases along the fault show a large range of variation in the V2 values indicating strong fractionation during migration.
