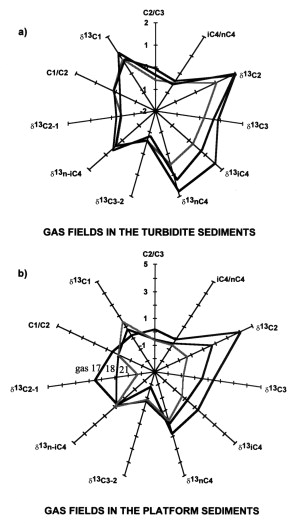

Figure 12--Normalized Gastar diagrams of gases from the Espirito Santo basin. (a) Gases collected from fields located in the turbiditic sequences of the paleocanyons with maturity variations and minor segregations. (b) Gases collected in fields located in the platform sediments with both maturity and segregation variations. The scales are the same for all 11 axes of each Gastar diagram.
