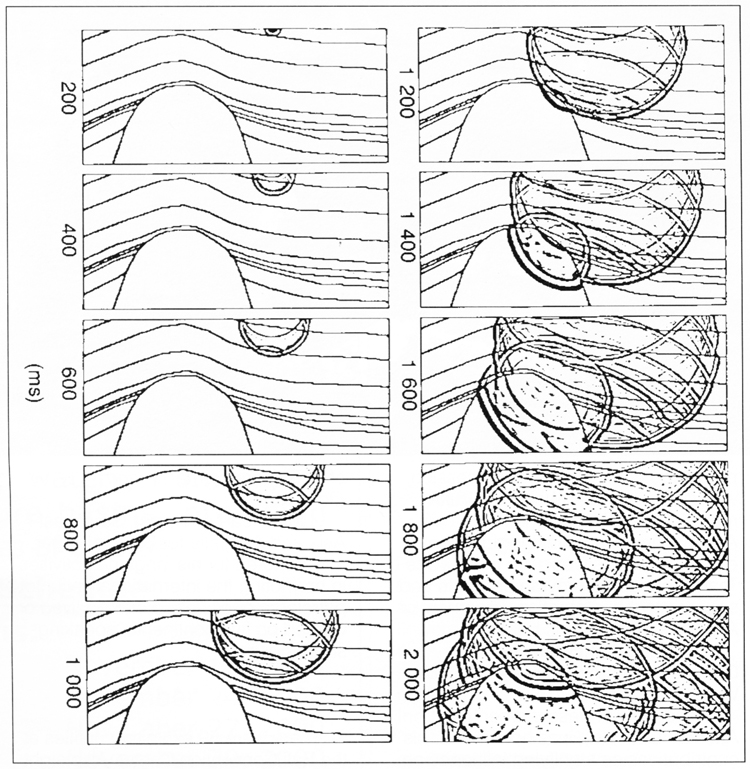

Figure 1. A series of model snapshots of an expanding seismic wavefield at 200 ms time intervals for a surface seismic source above a salt dome model. The figure is from a paper by Whitmore and Lines (1986) and is used with the authors’ permission.

Click here for sequence of the snapshots of an expanding seismic wavefield.
