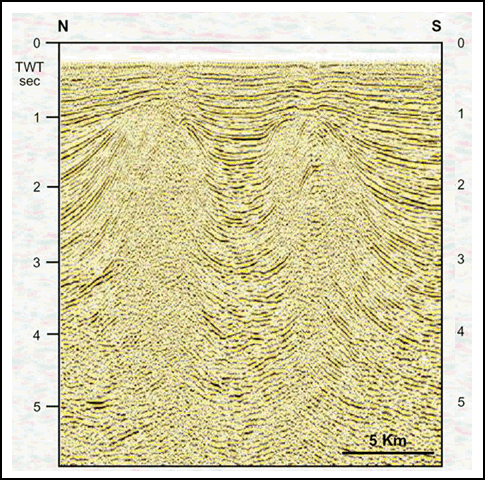

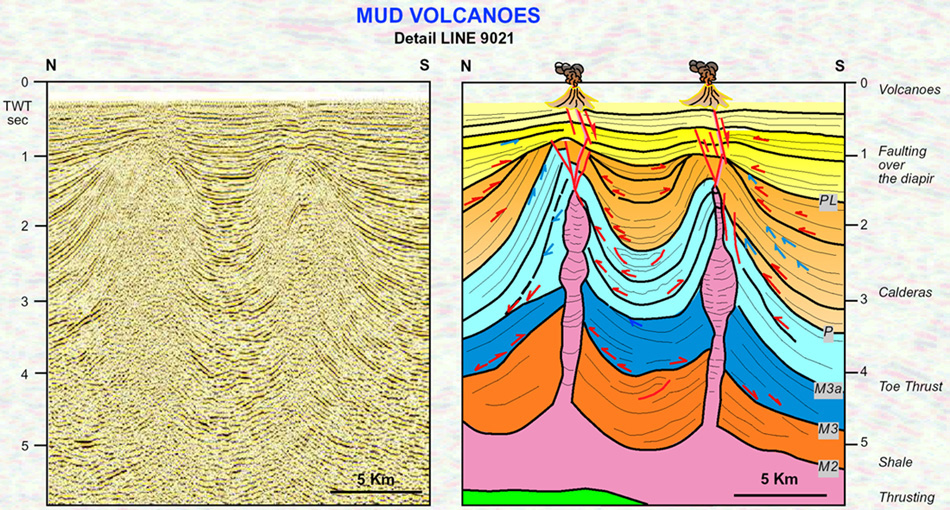

Figure 2-8. Detail of seismic section (Detail Line 9021) and interpretation of diapirism in Zone IV. Note mud volcanoes produced by chimneys that reach the surface along normal faults above the mud chamber.

Click here to view sequence of uninterpreted and interpreted sections.
