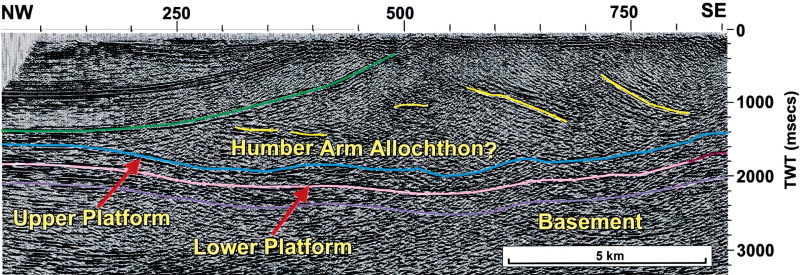

Figure 8. Seismic line CHA-92-1B; for location see Figure 5 and for legend see Figure 6 caption. The yellow horizons are unknown seismic events in the Humber Arm allochthon that are included to show the internal geometry of the triangle zone.
