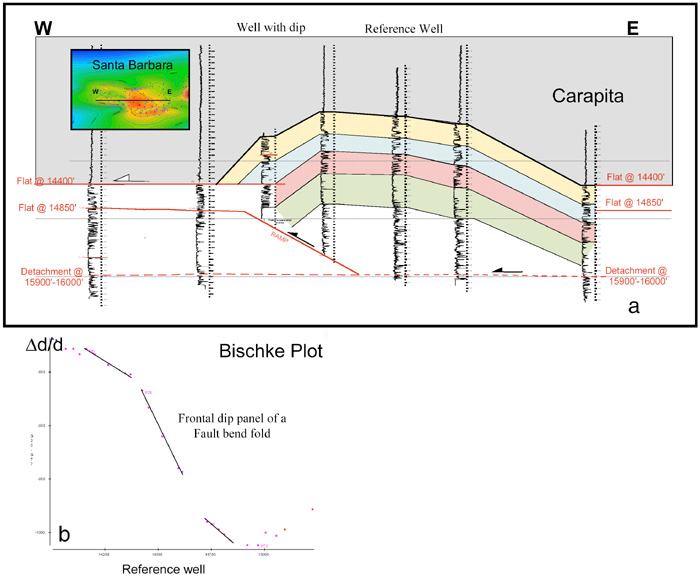

Figure 3.1. a. Fault bend fold as seen in cross-section. b. Bischke plot: frontal dip panel of a fault bend fold.
