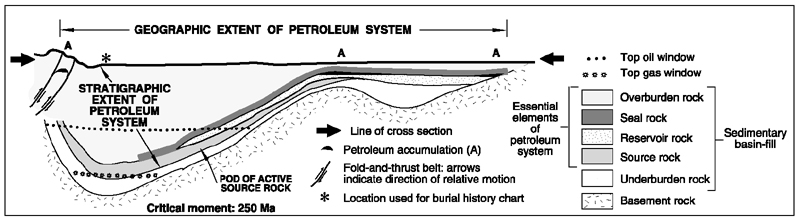

Figure 5. Geologic cross-section showing the stratigraphic extent of the fictitious Deer-Boar(.) petroleum system at the critical moment (250 Ma). Thermally immature source rock lies updip of the oil window. The pod of active source rock is downdip of the oil window. From Magoon and Dow (1994).
