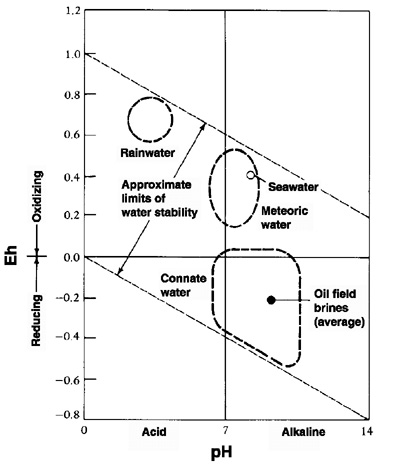

Figure 4. Eh-pH diagram, showing the approximate distribution of various types of subsurface fluids. From Shelley, 1985; courtesy W.H. Freeman and Co.
