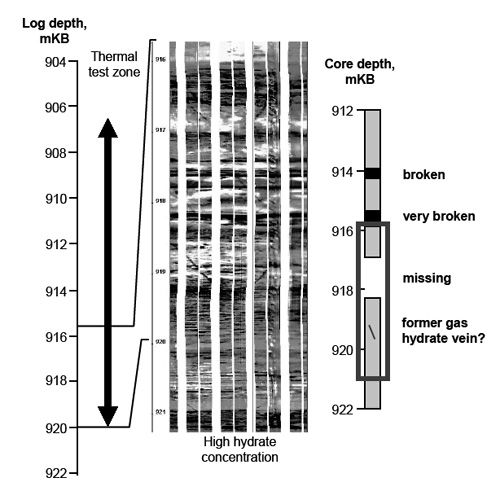

Figure 2. Natural fracture identified in the image log over the lower portion of the thermal test zone from Mallik 5L-38. The thick arrow to the left of the figure denotes the limits of the thermal test zone. The lower portion of this zone is pictured in the FMI image. The condition of the core is indicated to the right of the figure. The open blue rectangle straddling the schematic depiction of the core denotes the vertical extent of the pictured FMI. Due to possible core depth shifts, the position of the rectangle is approximate.
