GCSpectral Decomposition for 3-D Geomodeling*

Brad C. Wallet¹

Search and Discovery Article #41408 (2014)
Posted August 11, 2014

*Adapted from the Geophysical Corner column, prepared by the authors, in AAPG Explorer, August, 2014. Editor of Geophysical Corner is Satinder Chopra ([email protected]). Managing Editor of AAPG Explorer is Vern Stefanic.

¹University of Oklahoma, Norman, Oklahoma ([email protected])

General Statement

Spectral decomposition attributes use a localized time-frequency decomposition within individual traces to characterize seismic data by its spectral content. Since localized spectral content can be linked to physical phenomena of channels such as fill velocity and thickness, such techniques have been popular in the past decade for characterizing and interpreting of fluvial systems including turbidites.

The original work using spectral decomposition focused upon qualitative interpretation upon time slices and/or phantom horizons with a goal of broad scale interpretation and reservoir description. In recent years, however, a number of workflows have been developed to use spectral decomposition for 3-D geomodeling to extract architectural elements such as channels. Most of these methods are proprietary – and, to my knowledge, few have been documented or published.

A typical workflow might involve the use of the instantaneous frequency attribute to determine the dominant frequency associated with a channel. Once this information has been ascertained, an interpreter then might use some spatially associated thresholding (i.e. amplitude clipping) method to extract the channel. These results then would undergo further processing, such as smoothing or denoising, to produce a final interpretation.

♦General statement
♦Figures
♦Method
♦Example
♦Conclusion
♦Acknowledgment

















♦General statement
♦Figures
♦Method
♦Example
♦Conclusion
♦Acknowledgment

















♦General statement
♦Figures
♦Method
♦Example
♦Conclusion
♦Acknowledgment

















♦General statement
♦Figures
♦Method
♦Example
♦Conclusion
♦Acknowledgment

















♦General statement
♦Figures
♦Method
♦Example
♦Conclusion
♦Acknowledgment

Figure Captions

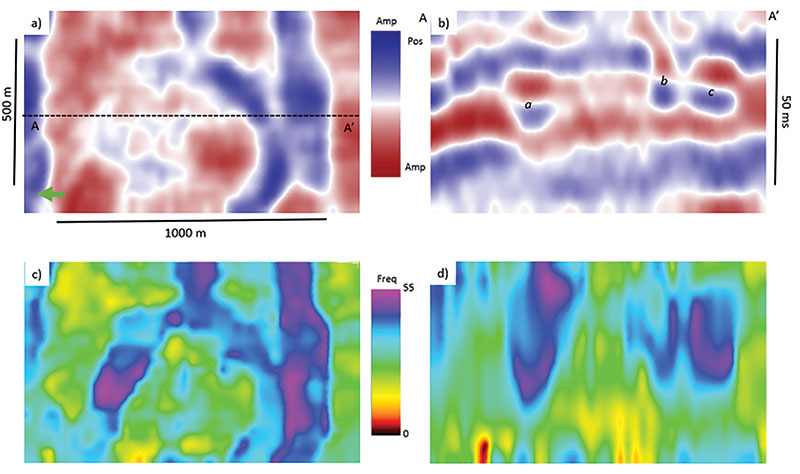

Figure 1. Panel (a) shows a time slice of seismic data containing channels, and (b) shows a vertical slice of the same seismic data taken perpendicular to the paleo-flow of the channels. Three channels – a, b and c – are identified. Panels (c) and (d) show the instantaneous frequency attribute for the views shown in (a) and (b), respectively. These images suggest frequencies in the 40-60 Hz range are likely associated with the channels.

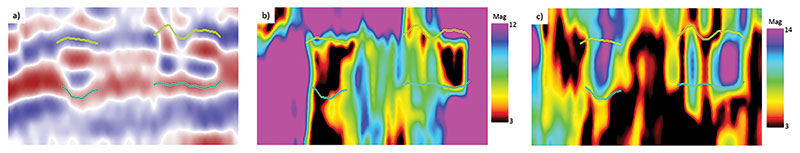

Figure 2. Panel (a) shows the same vertical slice of seismic data shown in Figure 1b with an interpretation of the channels based upon a top peak and a bottom trough. Panels (b) and (c) show the 30 and 50 Hz spectral components, respectively. Note that the channels are generally well interpretable in the spectral components, though some ambiguity exists in various cases.
