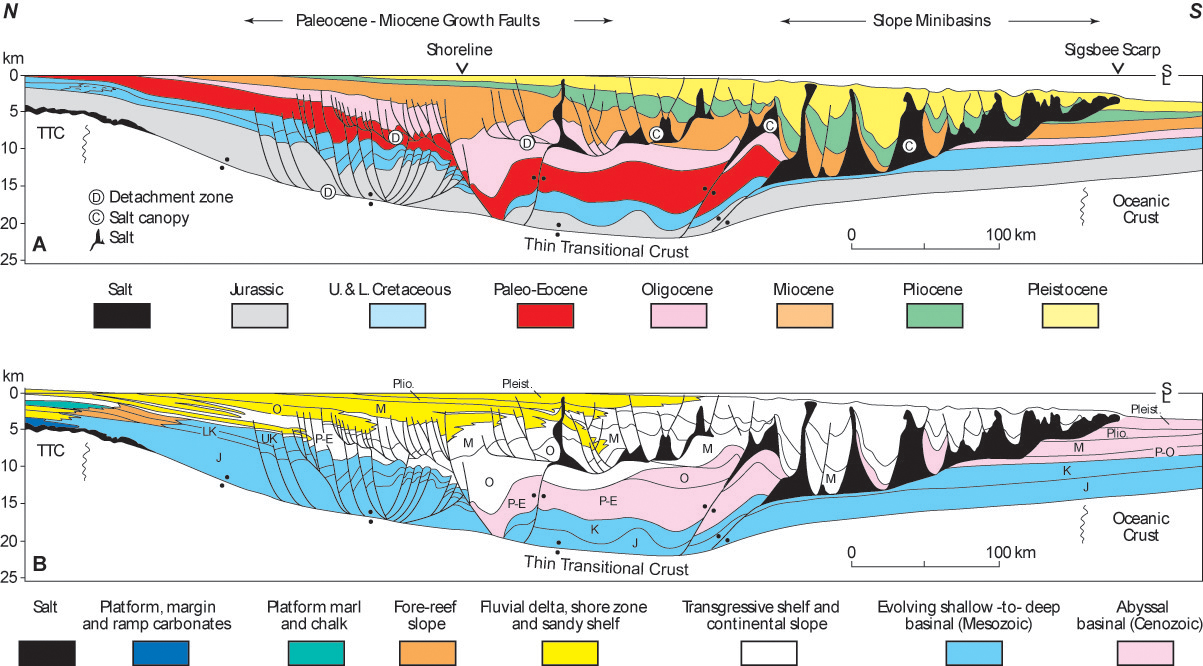

Figure 3. Regional cross section of the north-central Gulf basin. Above: stratigraphic and structural framework. Below: depositional facies associations of stratigraphic units. (Galloway, 2008, modified from Peel et al., 1995)
