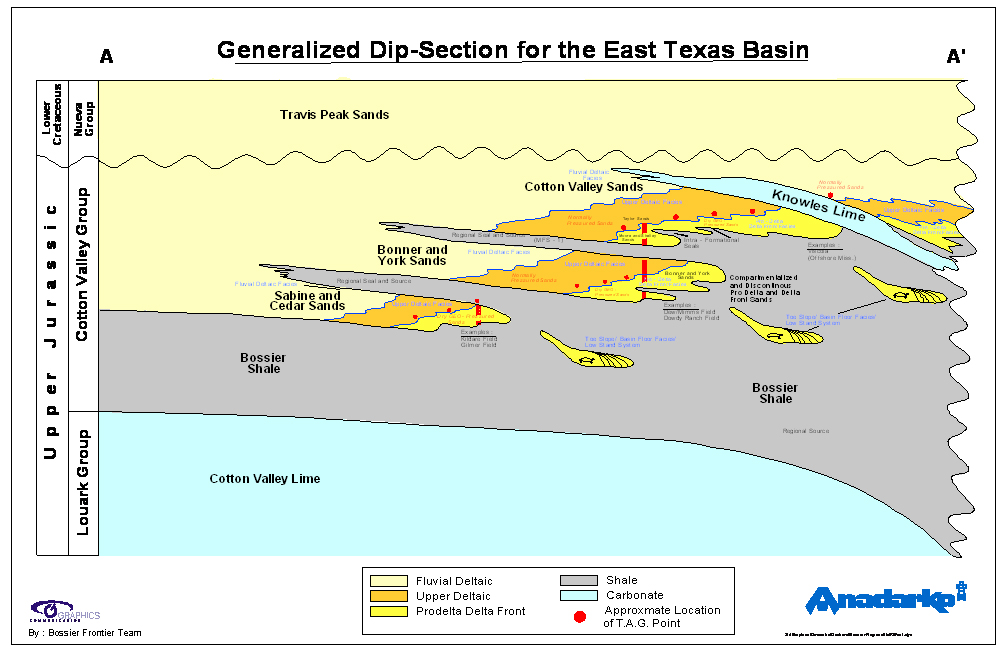

Figure 2. Generalized regional dip section of the Bossier facies. Sand deposition represents cycles of sand progradation into the basin onto organic-rich mud, succeeded by marine transgression. Much of the Bossier shales downdip appear to be time equivalent to the updip Cotton Valley Sandstone and represent prodelta/delta-front material related to Cotton Valley deltaic systems (drawing courtesy of Anadarko Petroleum Corporation, 1999).
