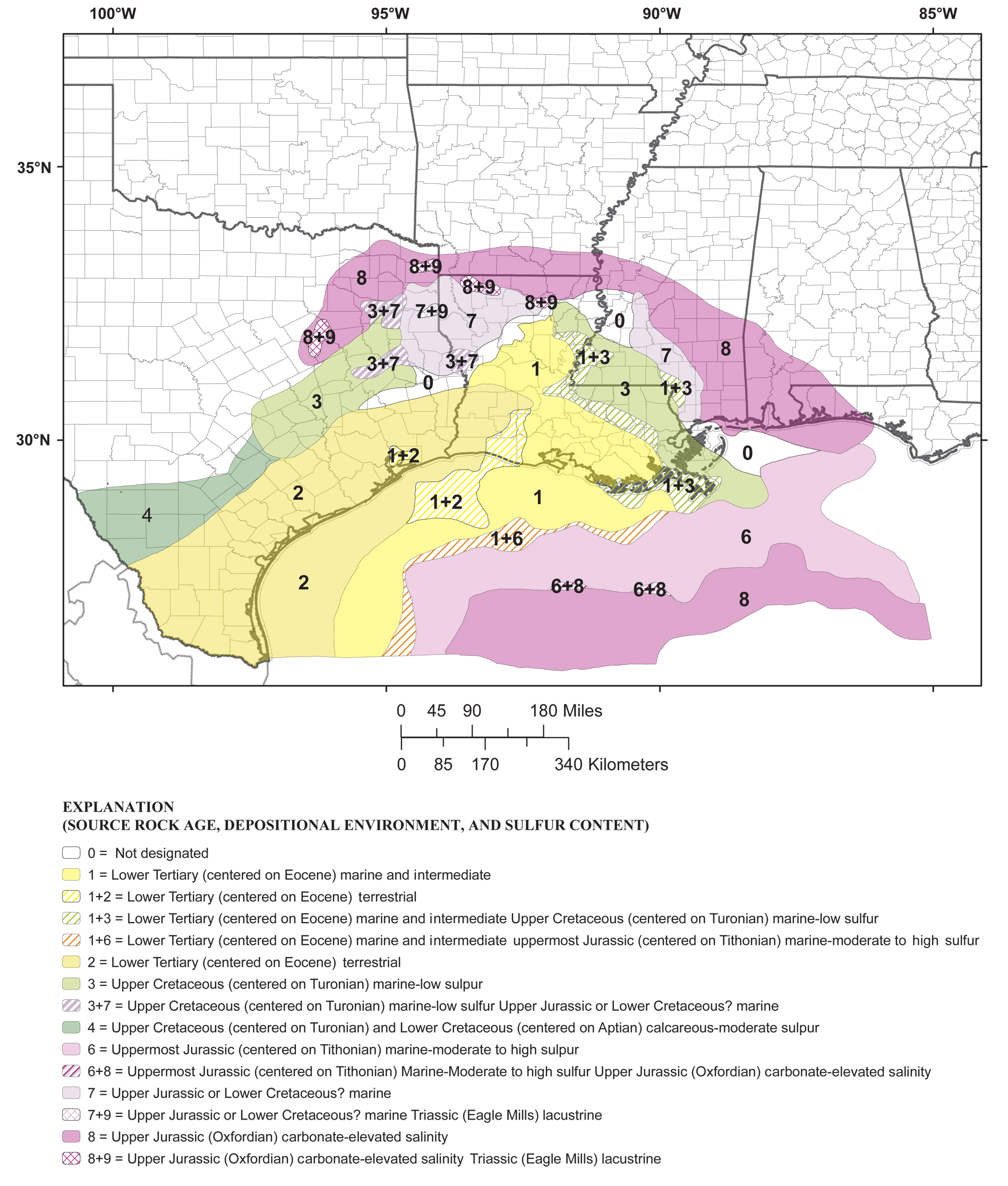

Figure 5. Interpreted petroleum systems map of the northern Gulf of Mexico region. “Intermediate” denotes depositional environments that are intermediate between marine and terrestrial (after Wenger et al., 1994; Hood et al., 2002; and Warwick et al., 2007a).
