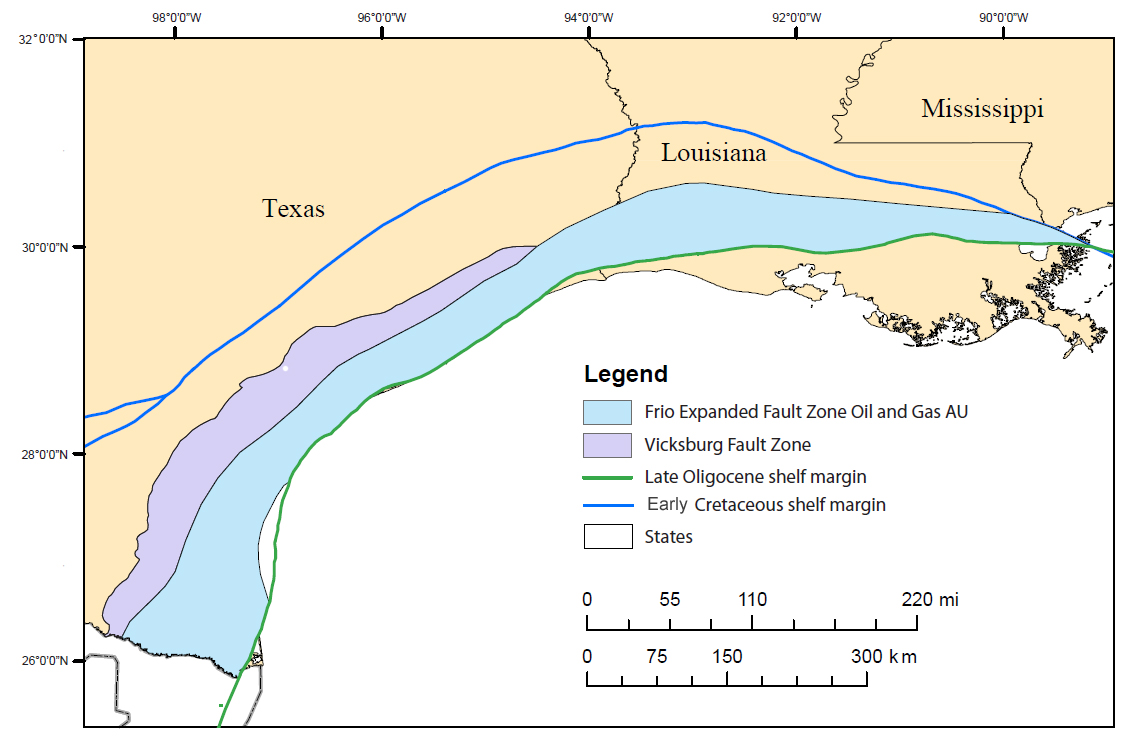

Figure 16. The Frio Expanded Fault Zone Oil and Gas Assessment Unit, with boundaries used to define the assessment unit. AU = assessment unit. The Vicksburg fault zone is modified from Ewing et al. (1990); the Early Cretaceous shelf margin is modified from Ewing and Lopez (1991); and the late Oligocene shelf margin is modified from Galloway et al. (2000).
