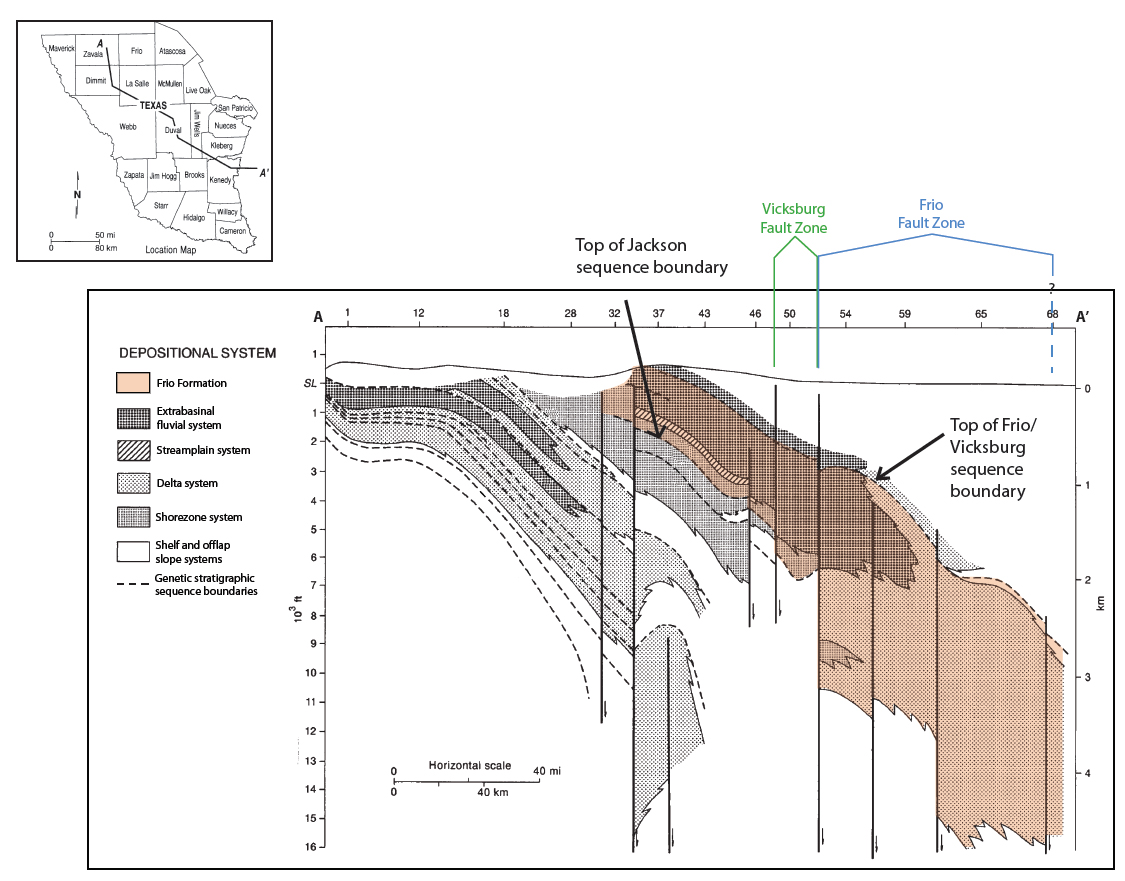

Figure 11. Cross section of the Frio Formation showing thickening and vertical displacement in the Vicksburg and Frio fault zones in south Texas (modified from Galloway et al., 1994; positioning of Vicksburg and Frio Fault zones based on Ewing et al., 1990).
