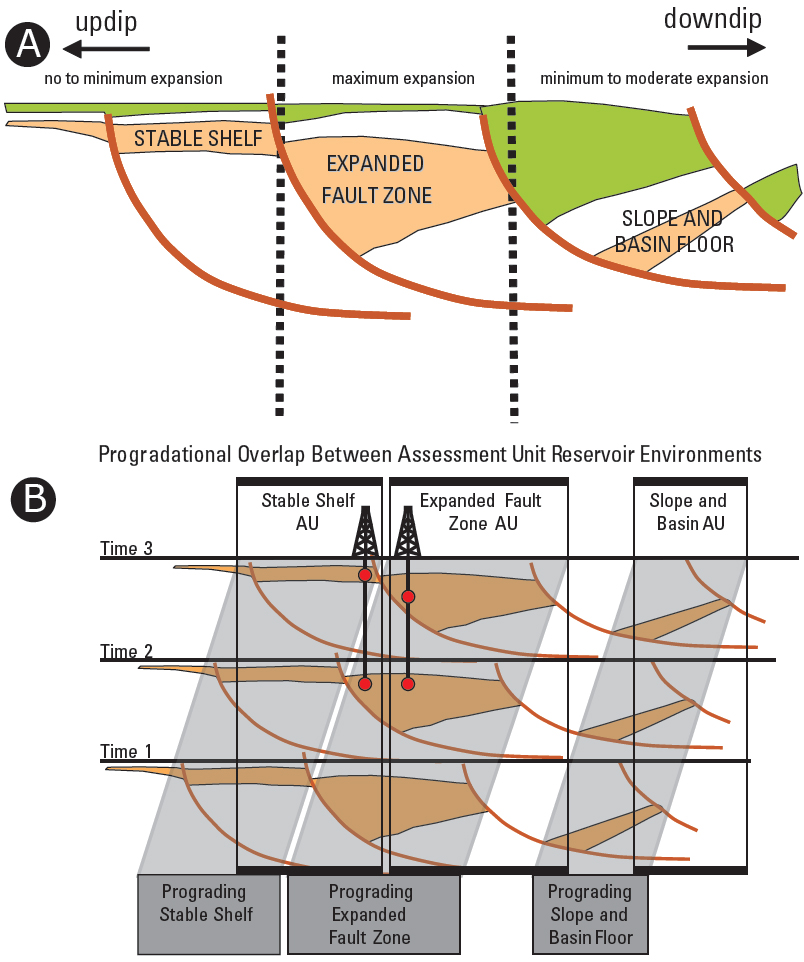

Figure 23. A. Geologic model for the prograding Cenozoic stratigraphy of the Gulf of Mexico Basin. From Warwick et al., 2007. B. Time-transgressive nature of geologic model environments.
