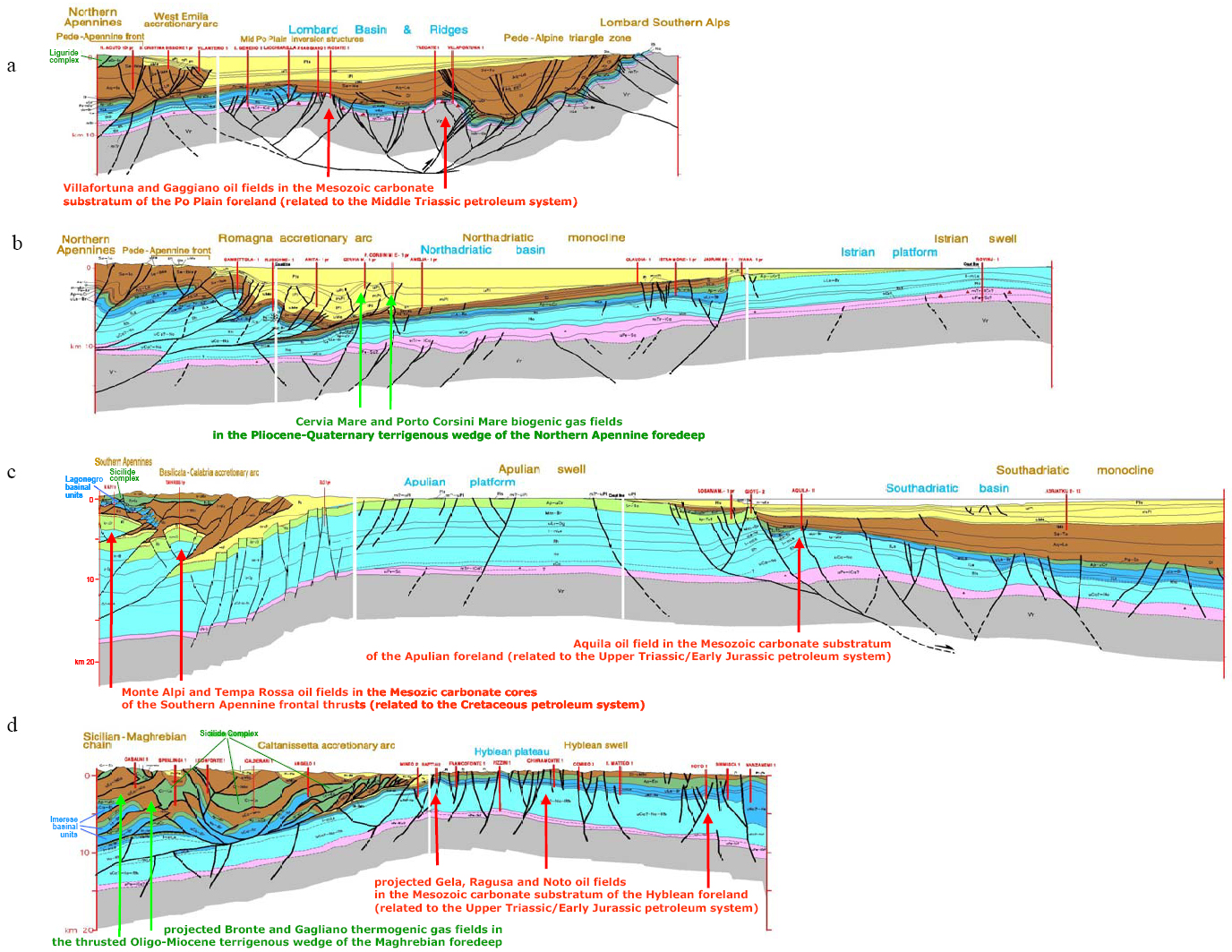

Figure 6. Structural cross-sections showing structural-tectonic settings of significant fields. a. Villafortuna and Gaggiano oil fields in the Mesozoic carbonate substratum of the Po Plain foreland (related to the Middle Triassic petroleum system).
b. Cervia Mare and Porto Corsini Mare biogenic gas fields in the Pliocene-Quaternary terrigenous wedge of the Northern Apennine foredeep.
c. Monte Alpi and Tempa Rossa oil fields in the Mesozoic carbonate cores of the Southern Apennine frontal thrusts (related to the Cretaceous petroleum system).
Aquila oil field in the Mesozoic carbonate substratum of the Apulian foreland (related to the Upper Triassic/Early Jurassic petroleum system).
d. Projected Bronte and Gagliano thermogenic gas fields in the thrusted Oligo-Miocene terrigenous wedge of the Maghrebian foredeep.
Projected Gela, Ragusa and Noto oil fields in the Mesozoic carbonate substratum of the Hyblean foreland (related to the Upper Triassic/Lower Jurassic petroleum system).
