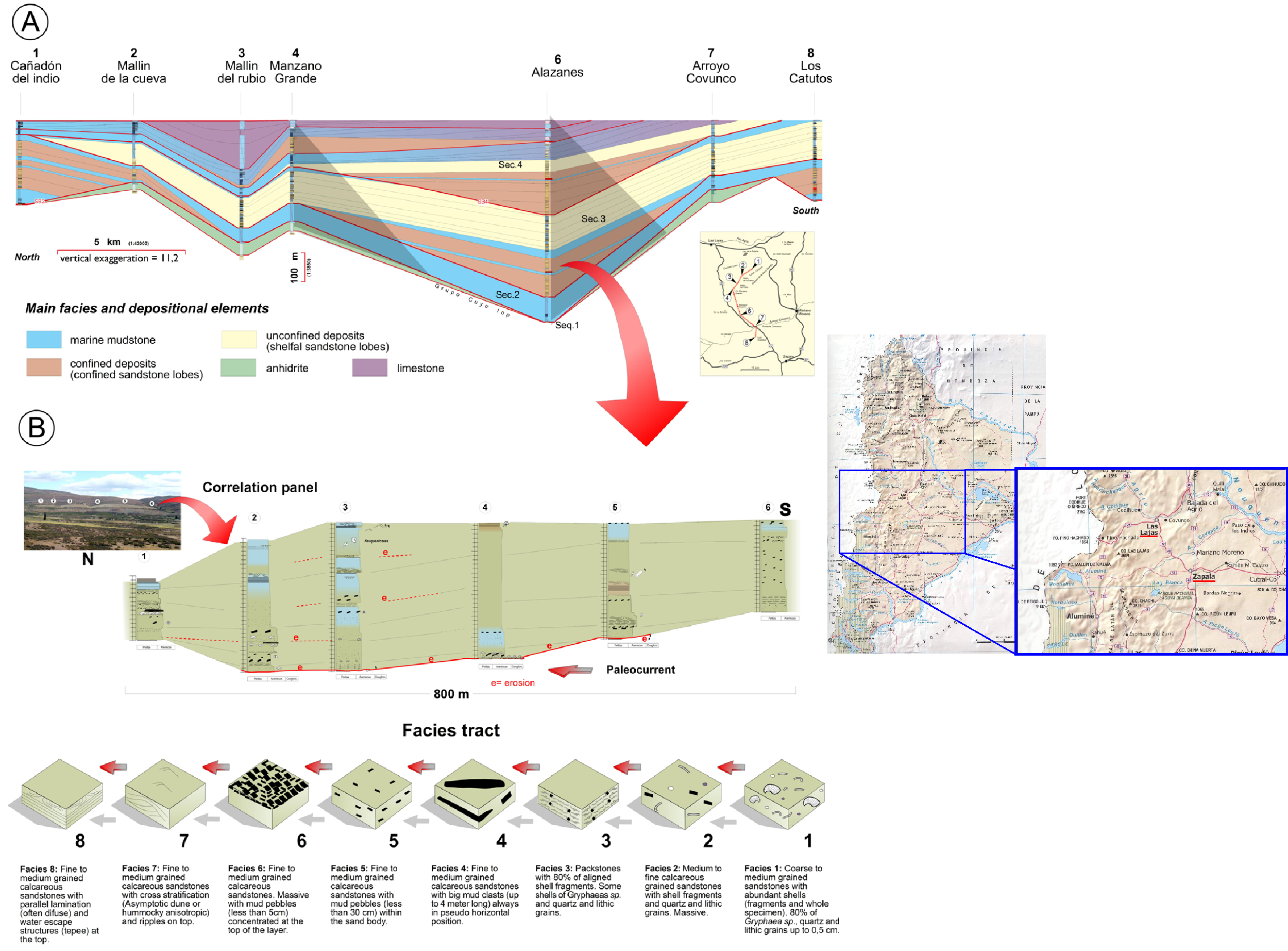

Figure 1. An example of Sierra de la Vaca Muerta sandstone lobes: Lotena Formation. A) Regional panel correlation of Lotena Formation. Note the arrangement of confined shelfal lobes, modified from Zavala and Gonzalez (2001). B) Detailed correlation panel of an individual sandstone body.
