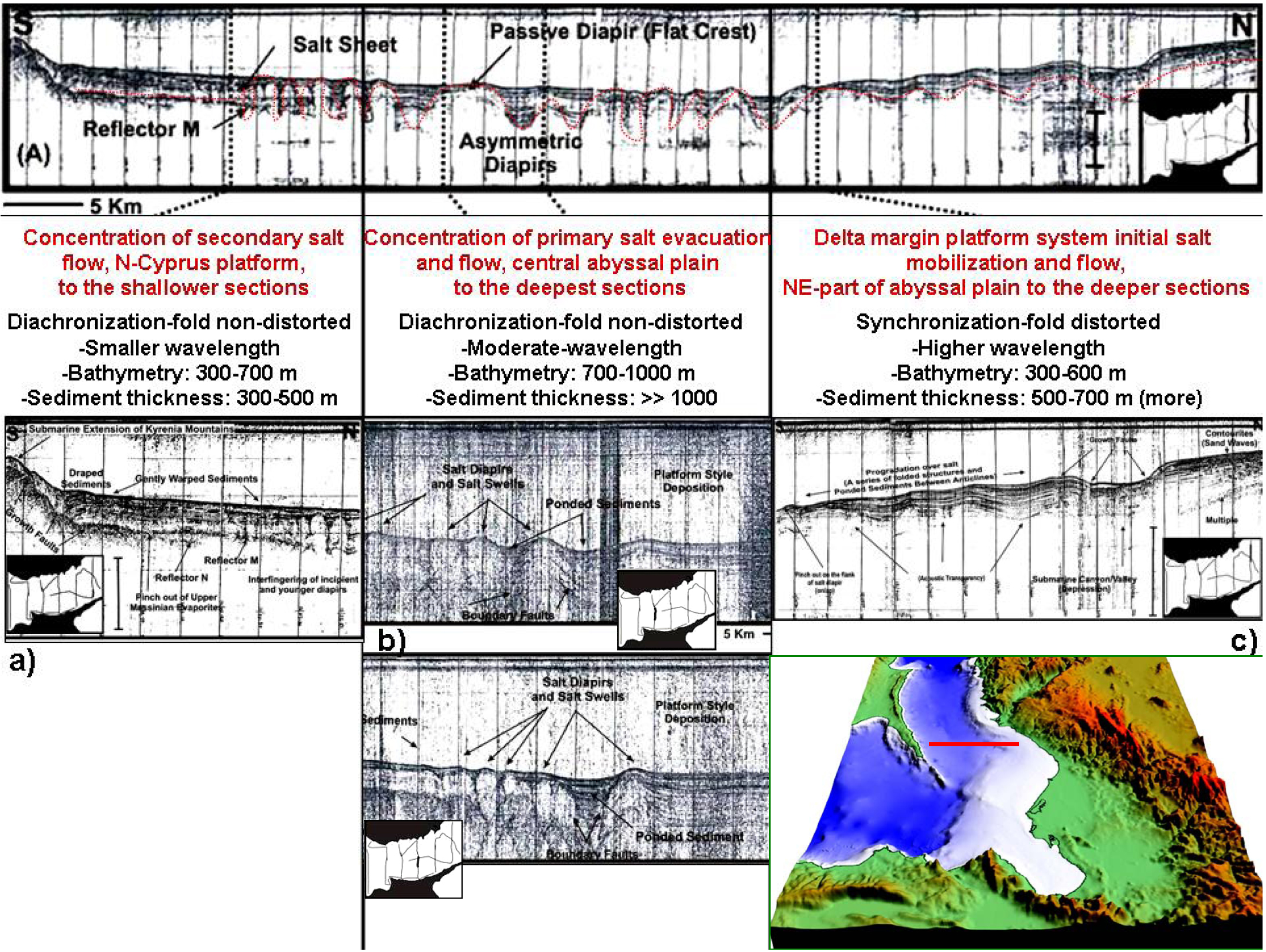

Figure 3. Seismic profile (A) with red dashed line illustrates the geometry of an inter-marginal salt withdrawal syncline (basin) (south Turkey to north Cyprus) and contrasting fold frequencies of salt-sediment body styles. Inter-marginal salt-sediment dynamics and related water depth, sediment thickness, wavelengths, and distortional styles are also indicated in a, b, and c profiles. Scale is the same in Figure 2).
