Click on image to enlarge.

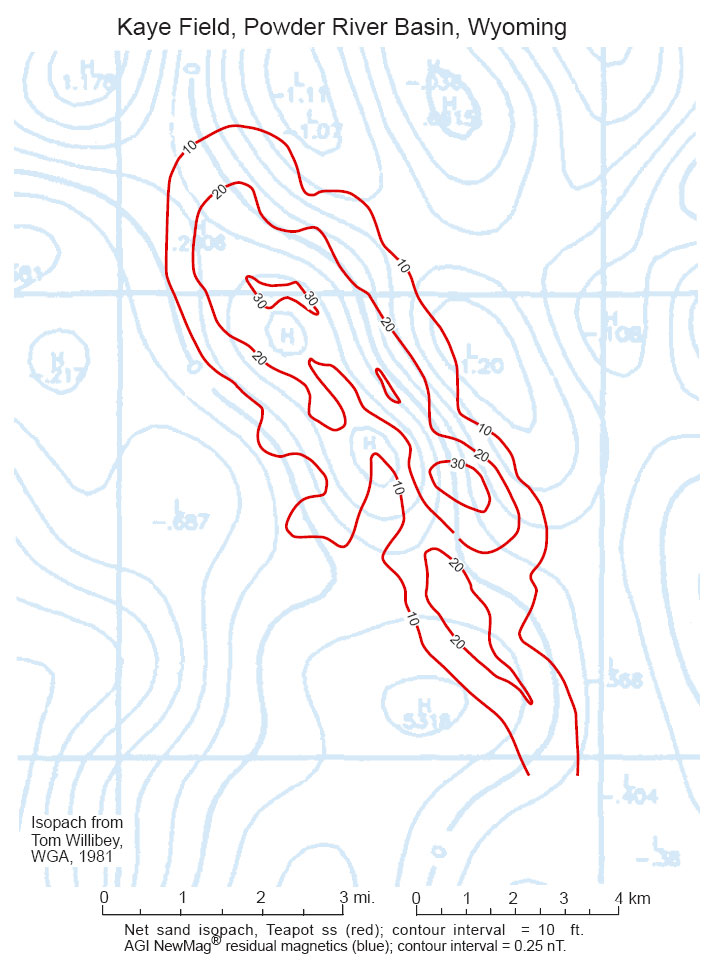

Figure 14. Kaye field shows that all fields are not necessarily directly over their causative basement faults. There are two faults here, one on each side of the center of the field, following the magnetic gradients.
