Click on image to view enlargement.

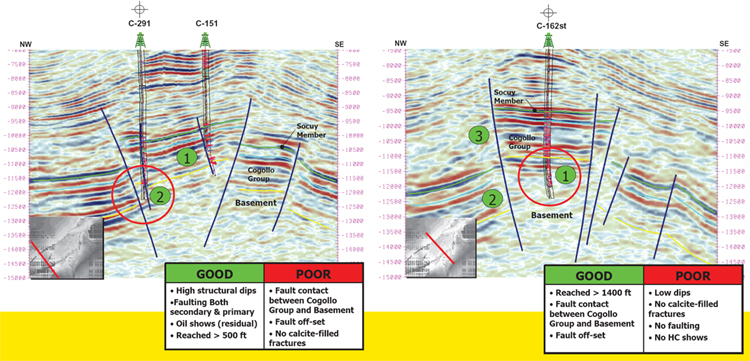

Figure 10-7. Non-producing wells. In-depth seismic sections showing non-producing wells from basement:1) Two wells located at both sides of the South Cretaceous structure, close to master reverse faults and is cut by a secondary one; 2) a well that reached more than 1400 ft into basement. The well is located in the middle of the South Cretaceous structure and do not cross any fault.
