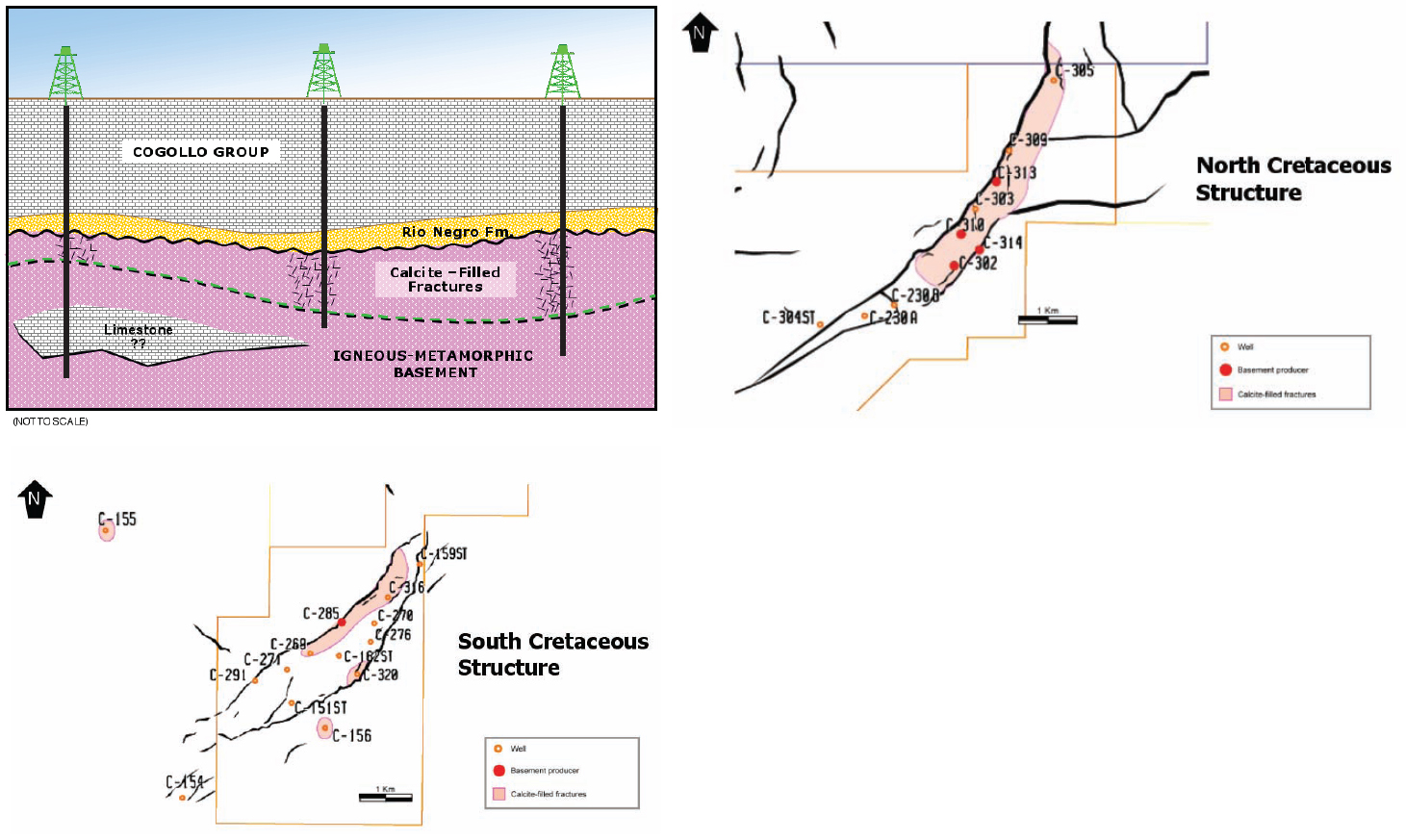

Figure 10-3. Maps of North Cretaceous and South Cretaceous structures, along with schematic cross-section. The wells have encountered oil in basement at different depths. All of them show in their top a zone, acting as a seal composed by calcite-filled fractures.
