Click image to view enlargement.

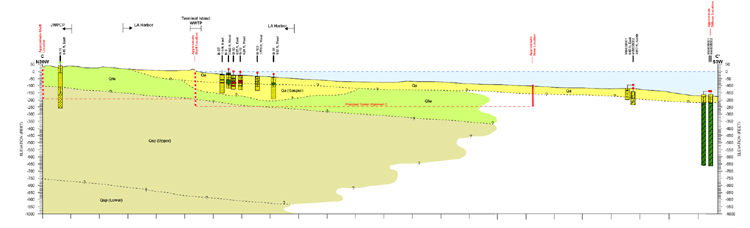

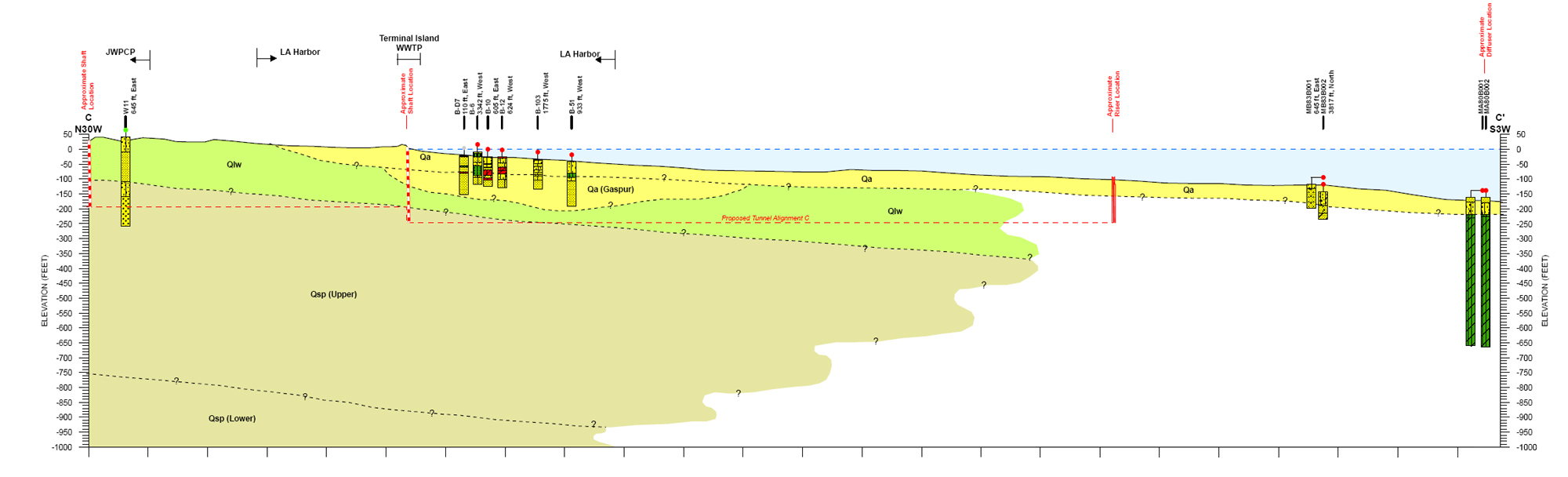

Figure 3-7. Section C: Stylized geologic section east of Palos Verdes fault.

This section shows the generally flat-lying stratigraphy east of the Palos Verdes fault zone. However, the relationship between the onshore and nearshore dominantly granular materials and the cohesive materials at the Beta oil field are poorly understood.
