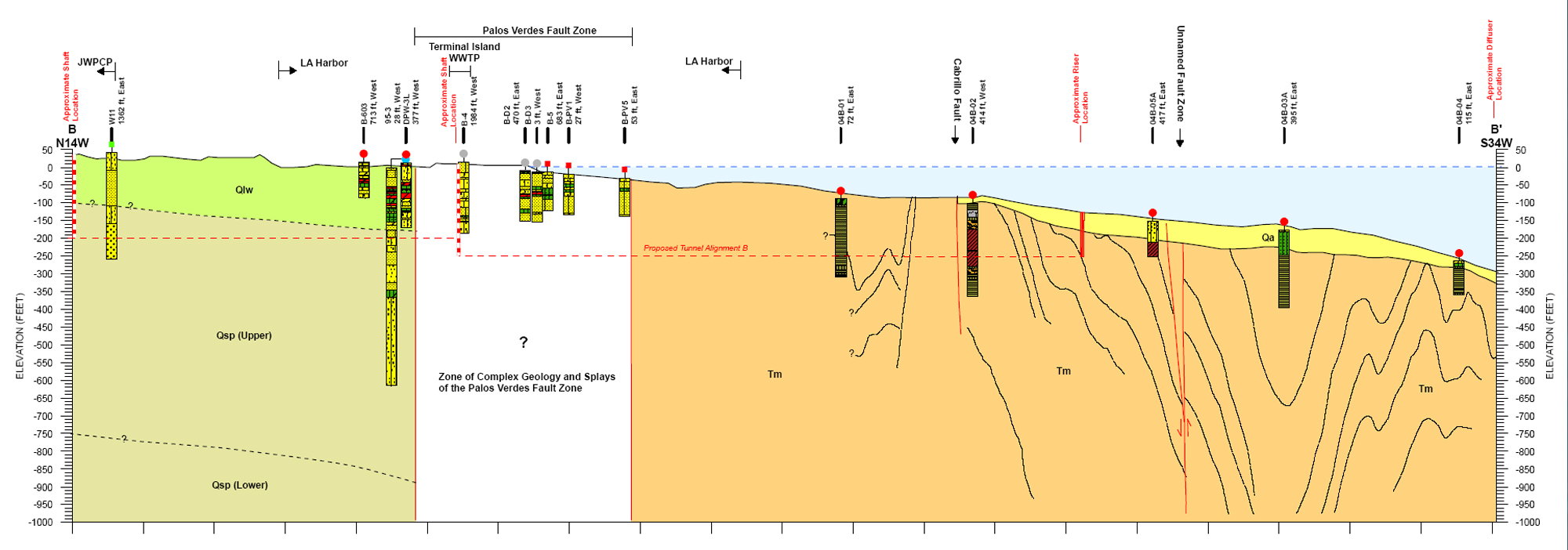

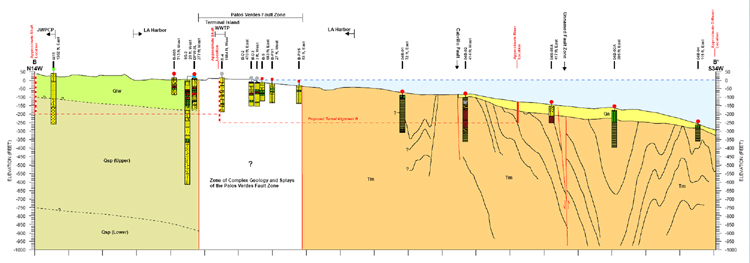

Figure 3-6. Section B: Stylized geologic section through central project area.

This section is stylized from survey data collected across San Pedro Shelf in 2004. Note the steeply dipping and irregular Miocene stratigraphy approaching the Continental shelfbreak.
