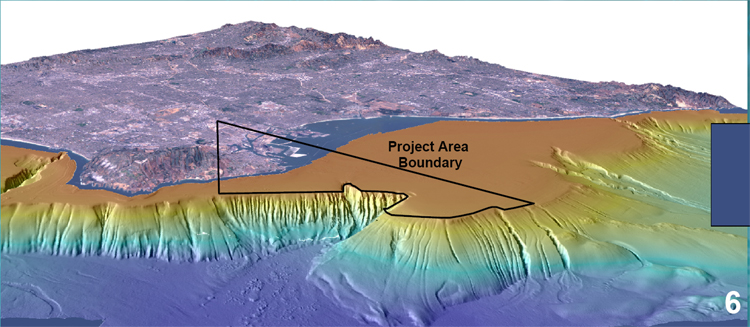

Figure 1-6. Three-dimensional topographic/bathymetric view of project area.

The project area is within the ancestral Los Angeles and San Gabriel alluvial plain and adjacent San Pedro continental shelf. Elevations range from about EL +15 meters at the JWPCP to EL -100 meters at the continental shelfbreak.
