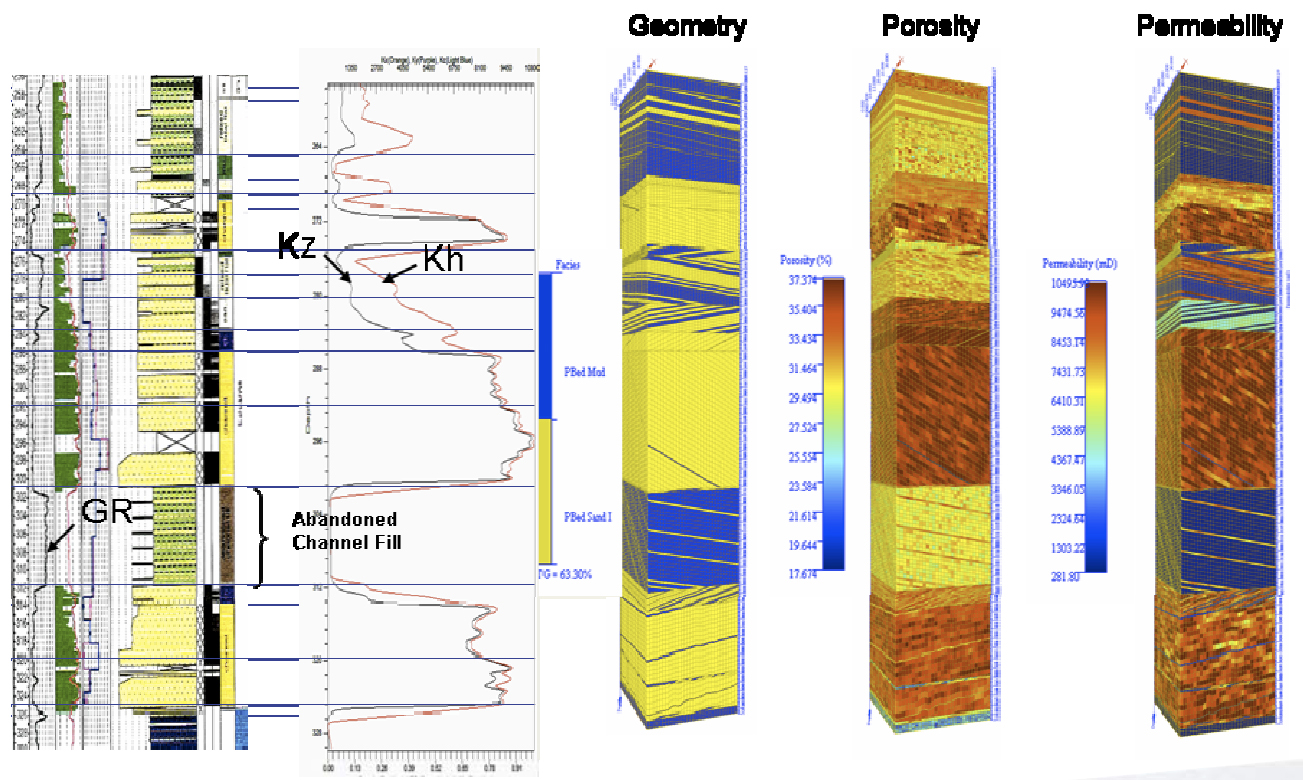

Figure 10. Moving windows upscaling. Moving windows upscaling results of Kz (blue) and Kh (orange) show flow unit boundaries and the core description log for the entire McMurray section. Note the gamma ray signature and extremely low permeability (<200 mD) of the abandoned channel fill section from 302 to 312 m.
