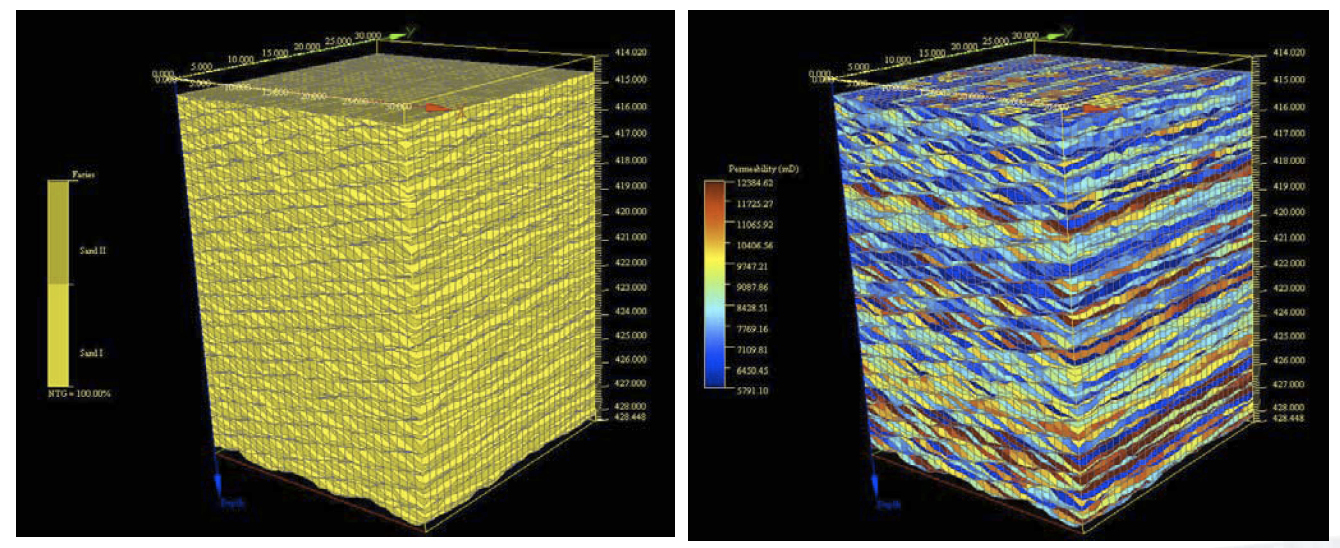

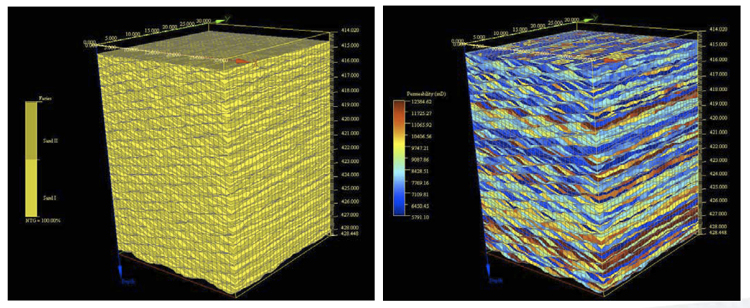

Figure 7. Generate small-scale models.

• Select a defined bedding structure template.

• Assign a lithofacies interval to it.

• Populate geometric parameters and rock type components to represent the observed bedding structures and sand:shale ratio for that lithofacies.

• Populate sub-model’s petrophysical parameters, including variance.

• Realize directional perm, porosity, and net to gross in the sub-model.
