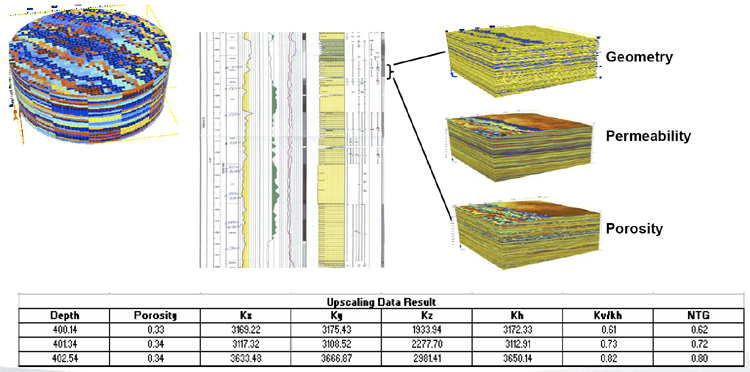

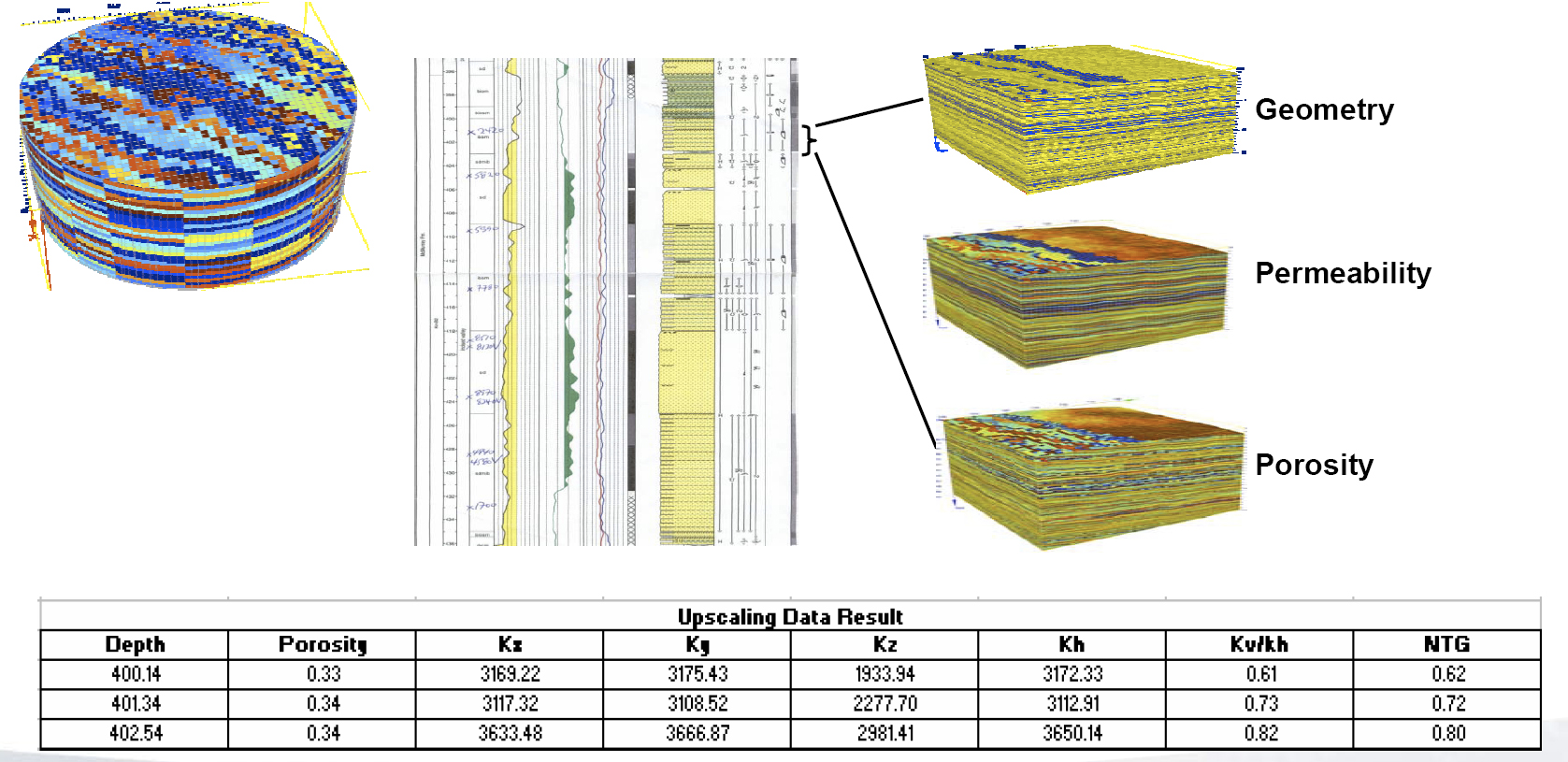

Figure 6. Development of the sub-model. The sub-model represents a particular lithofacies within the cored interval. Realizations (geometry, effective permeability, and porosity) are beside the core description. The table has Ø, Kx, Ky, Kz, Kh, Kv/Kh, and an estimate of net-to-gross reservoir by depth.
