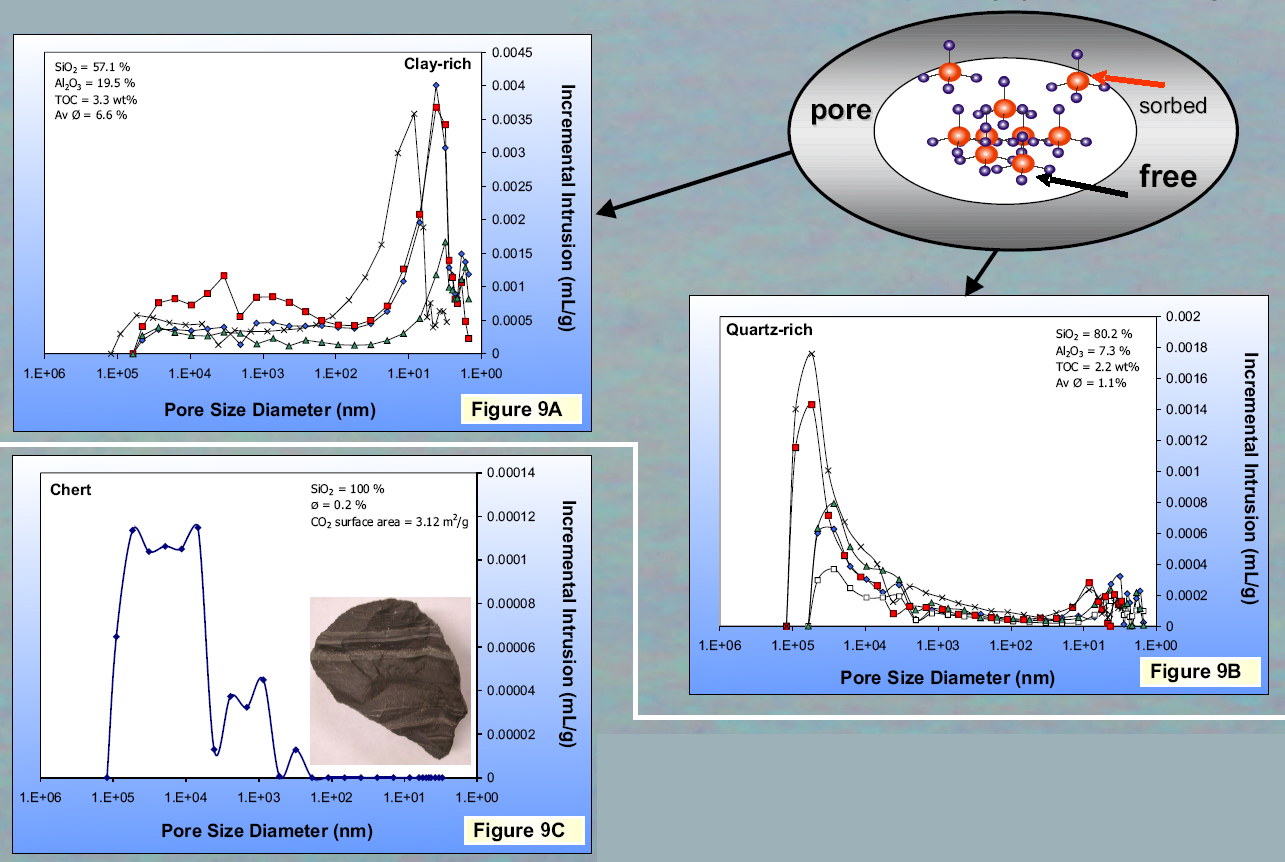

Figure 9. A. Plots of pore-size diameter vs. incremental intrusion, clay-rich D-M shales. B. Plots of pore size diameter vs. incremental intrusion, quartz-rich mudrocks. C. Plot of pore size diameter vs. incremental intrusion, chert.
