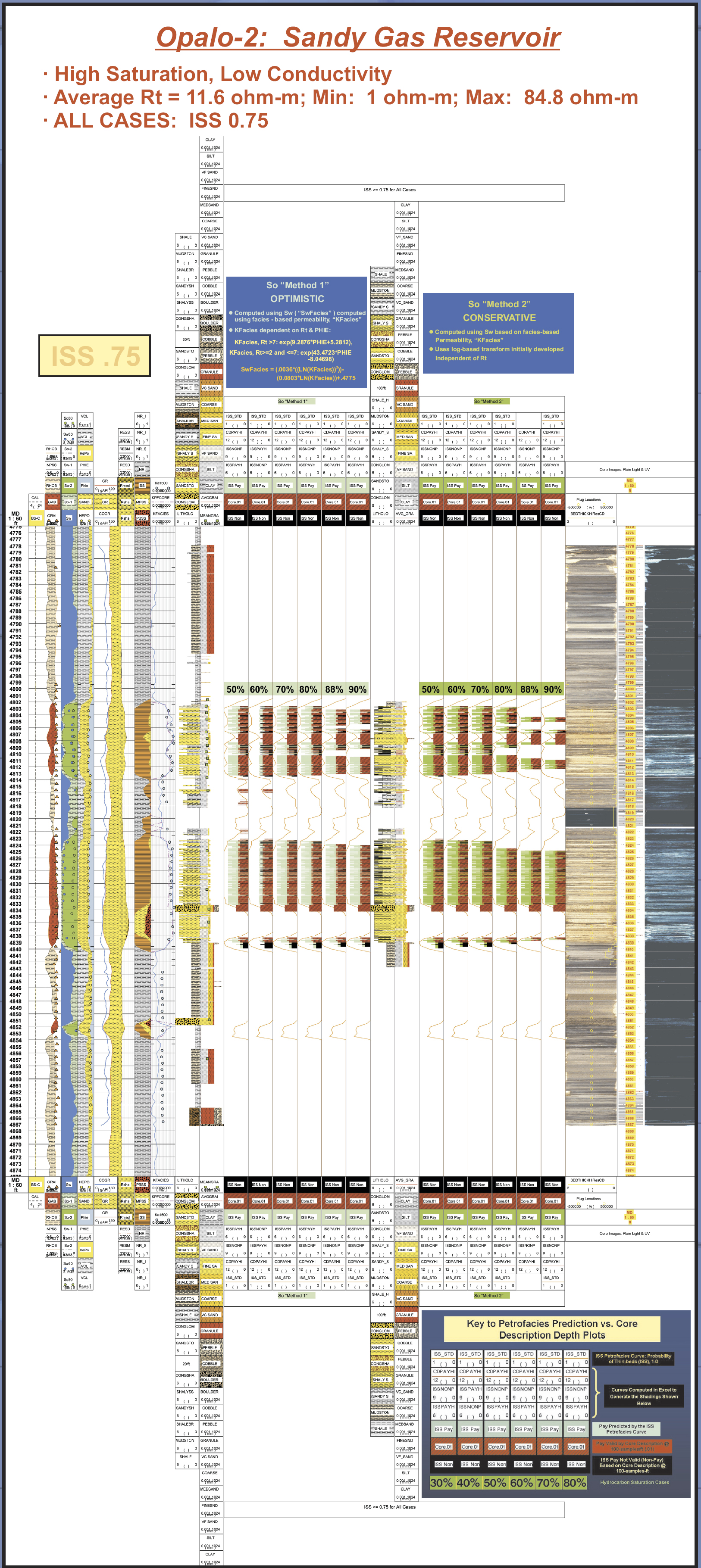

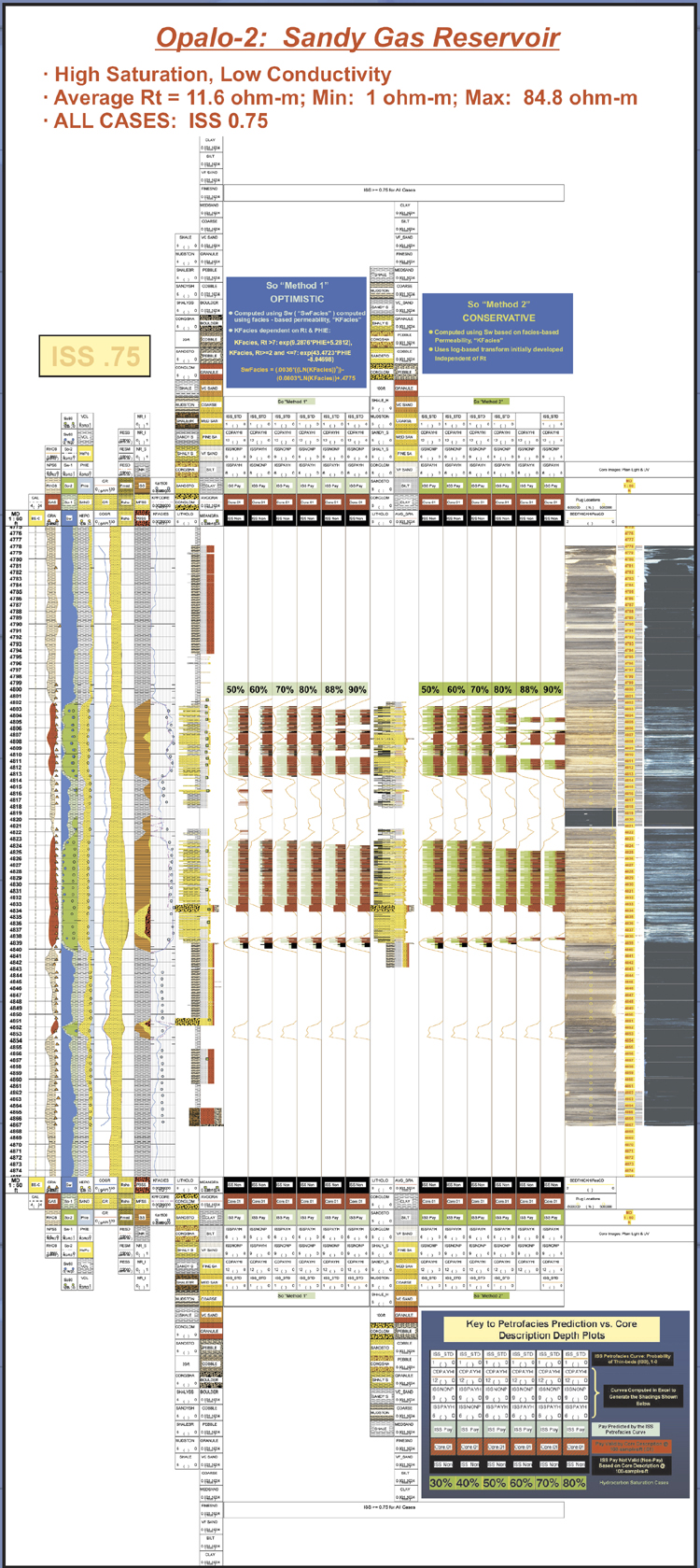

Figure 14. Opalo-2: Sandy gas reservoir.

• High saturation, low conductivity.

• Average Rt=11.6 ohm-m; Min: 1 ohm-m: Max: 84.8 ohm-m.

• ALL CASES: ISS 0.75
