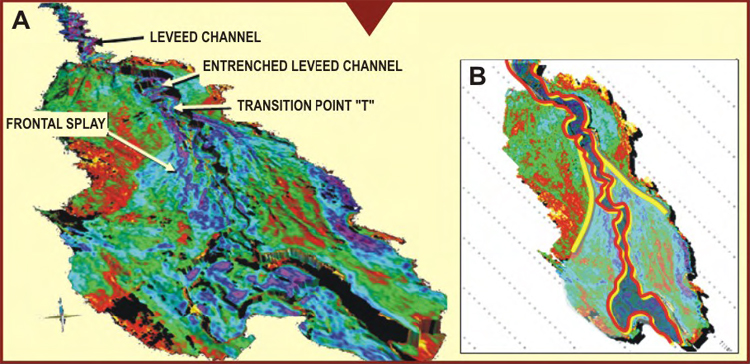

Figure 2-16. A. Perspective view of a reflection amplitude map, showing a single leveed channel attached to a frontal splay suggested by the fan-shaped spread of high amplitude reflections down-system from the transition point (T). B. The reflection pattern within the frontal splay, suggesting a distributive channel network. The entire system is ultimately traversed by an entrenched channel (modified from Posamentier, 2003).
