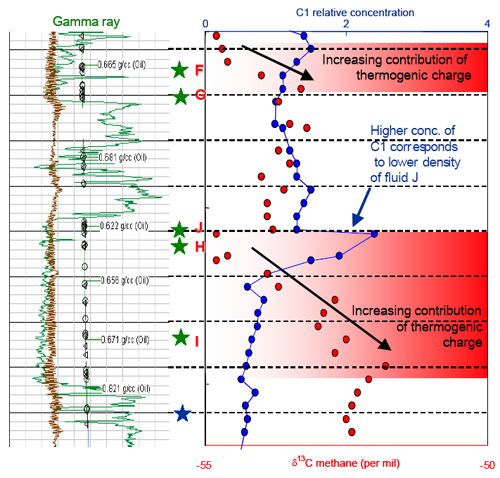

Figure 2. Concentration and d13C of CH4 in mud gas support observations of differing densities of fluids G and J. The gentle compositional gradient from J to I is confirmed by an isotopic trend indicating increasing thermogenic contribution with depth.
