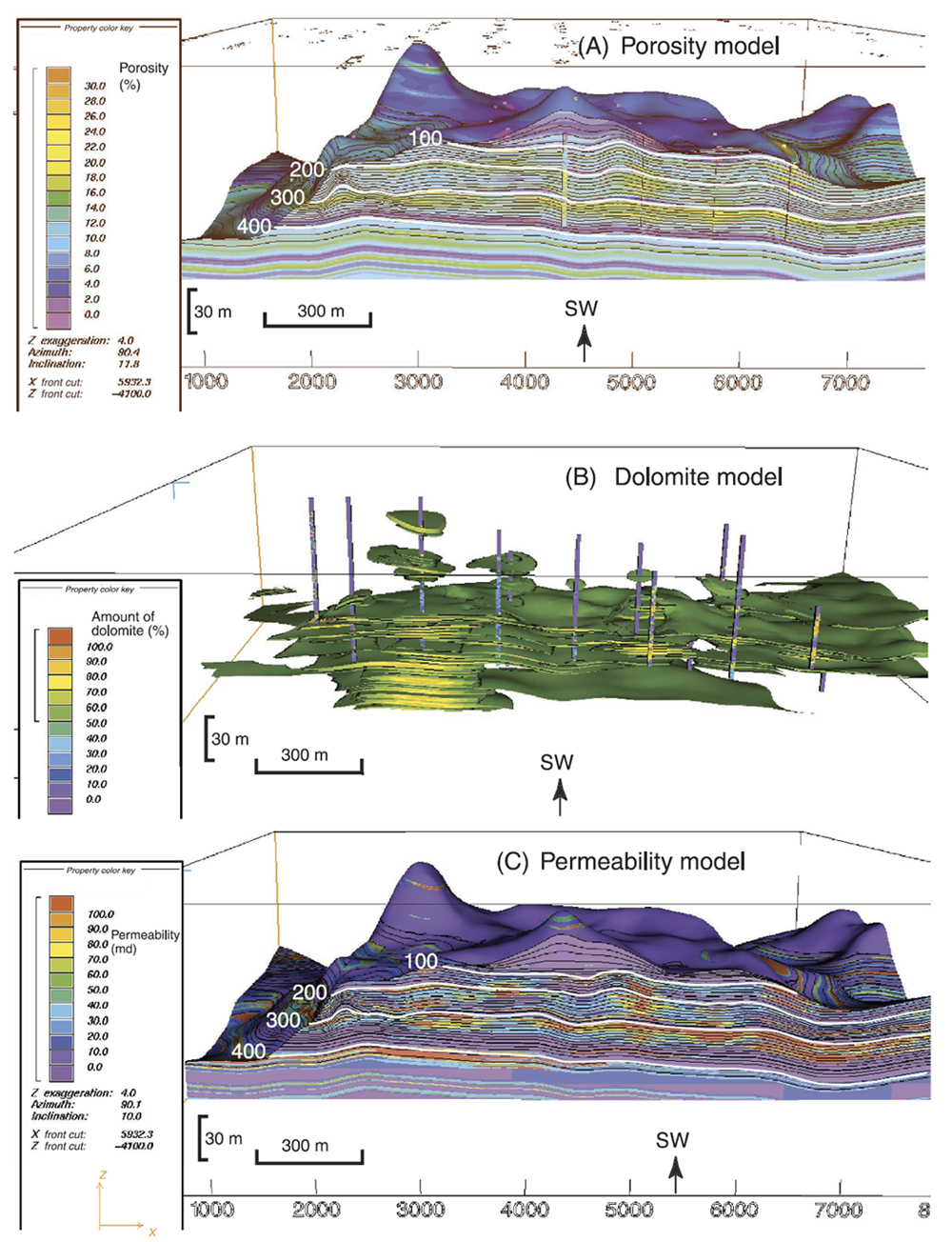

Figure 12. Reservoir characteristics of Reinecke's south dome looking from the northeast to the southwest (at the top). Vertical exaggerations are 4X. (A) Model for porosity distribution across the south dome of Reinecke field. (B) Model for dolomite distribution across the south dome of Reinecke field. Values are in percent dolomite. (C) Model for permeability distribution across the south dome of Reinecke field. Values are in millidarcy.
