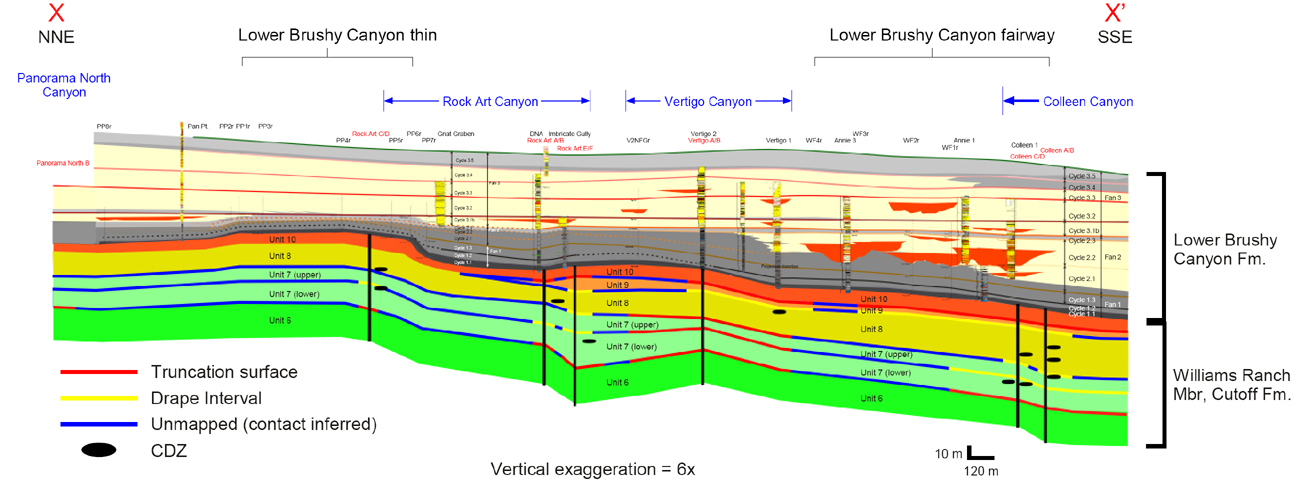

Figure 3-3. Cross section X-X' from Panorama North Canyon to Colleen Canyon. Brushy Canyon Formation section after Slope and Basin Consortium (2004). Cross section assumptions:

• Thickness change is constant within all correlation units between measured sections.

• Underlying structure is a control on MTE body geometries with possible basement influence.

• Topography at the surface of the Cutoff Formation is a control on Brushy Canyon Formation deposition.

• Thickness changes within the five correlation units may be a result of folding or of thrust sheet stacking within those units.
