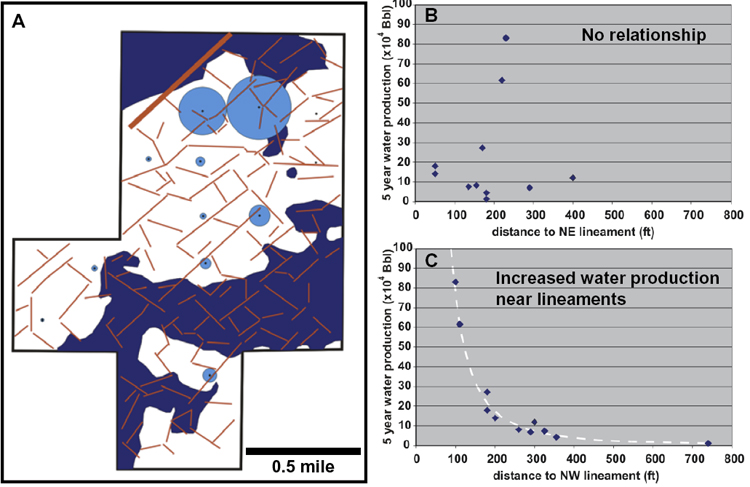

Figure 5. A) Bubble map showing with blue circles the amount of water produced during the first 5 years of production for each well within the Dickman seismic survey. The largest circle corresponds to approximately 830,500 Bbl. Interpreted lineaments are shown in red, and areas where the top of Mississippian is below the oil-water contact are shown in dark blue. B) 5-year water production versus distance to nearest northeast-trending lineament. C) 5-year water production versus distance to nearest northwest-trending lineament. Dashed white line is a trend line fit to the data using a power law function.
