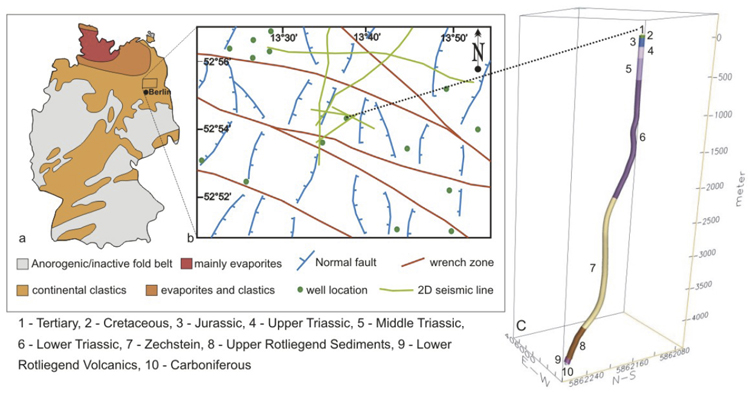

Figure 1. (a) Distribution of Rotliegend sediments in Germany. Box indicates the investigation area (modified after Ziegler, 1988). (b) Rotliegend structural pattern after Baltrusch et al. (1993). (c) Well path of the geothermal well GrSk 3/90.
