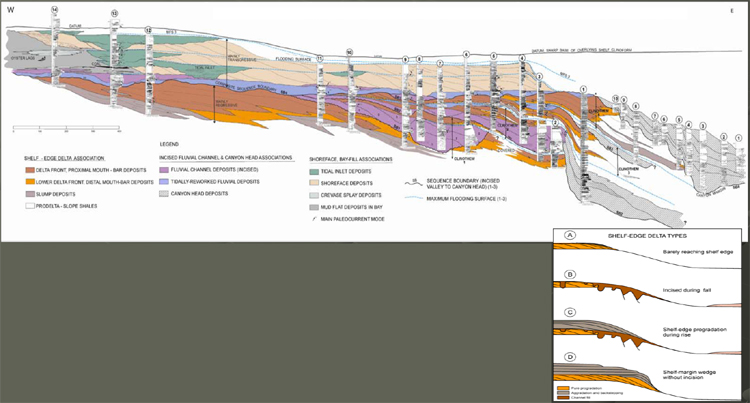

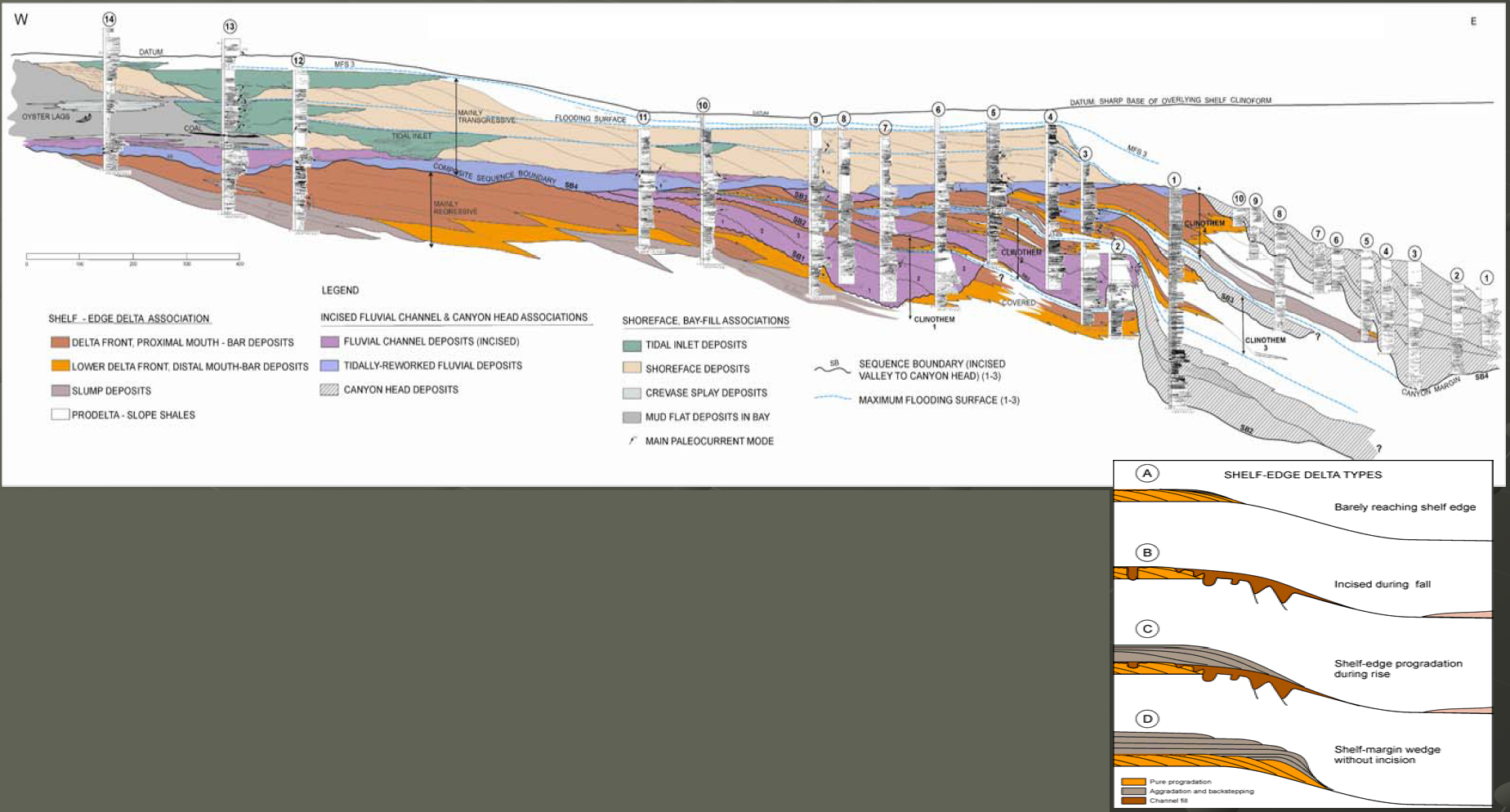

Figure 19. Stratigraphic cross-section, Brogniartfjellet, Spitsbergen, showing architecture of incised shelf-edge to slope-canyon clinoforms: facies associations (from Mellere et al., 2003, with kind permission of GCSSEPM Foundation, Norman C. Rosen, Executive Director). Inset same as Figure 17.
