Click on image for enlargement.

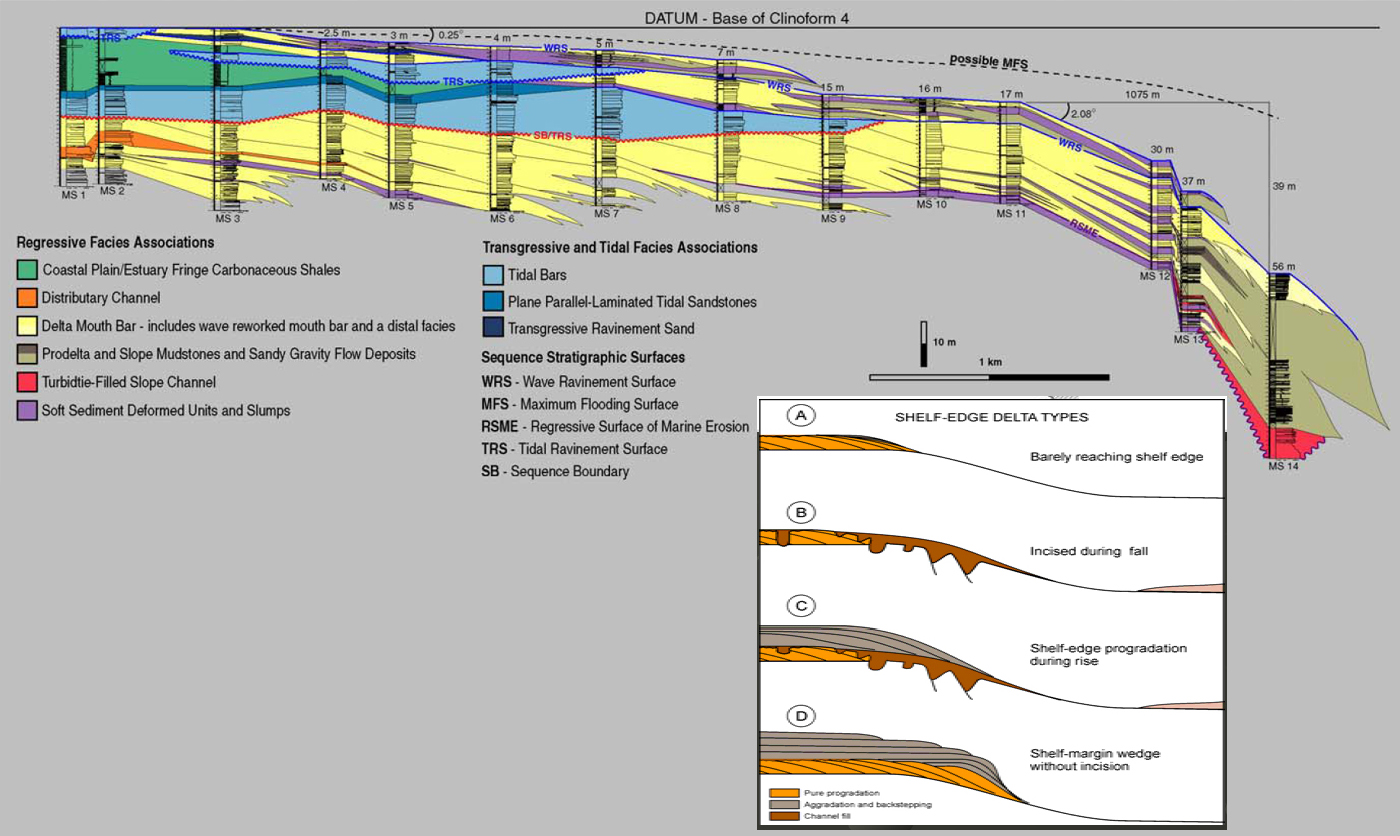

Figure 18. Stratigraphic cross-section of regressive facies, transgressive and tidal facies, and sequence stratigraphic surfaces from Spitsbergen outcrop area (from Schellpeper and Steel, 2001; Steel et al., 2003, with kind permission of GCSSEPM Foundation, Norman C. Rosen, Executive Director). Inset same as Figure 17.
