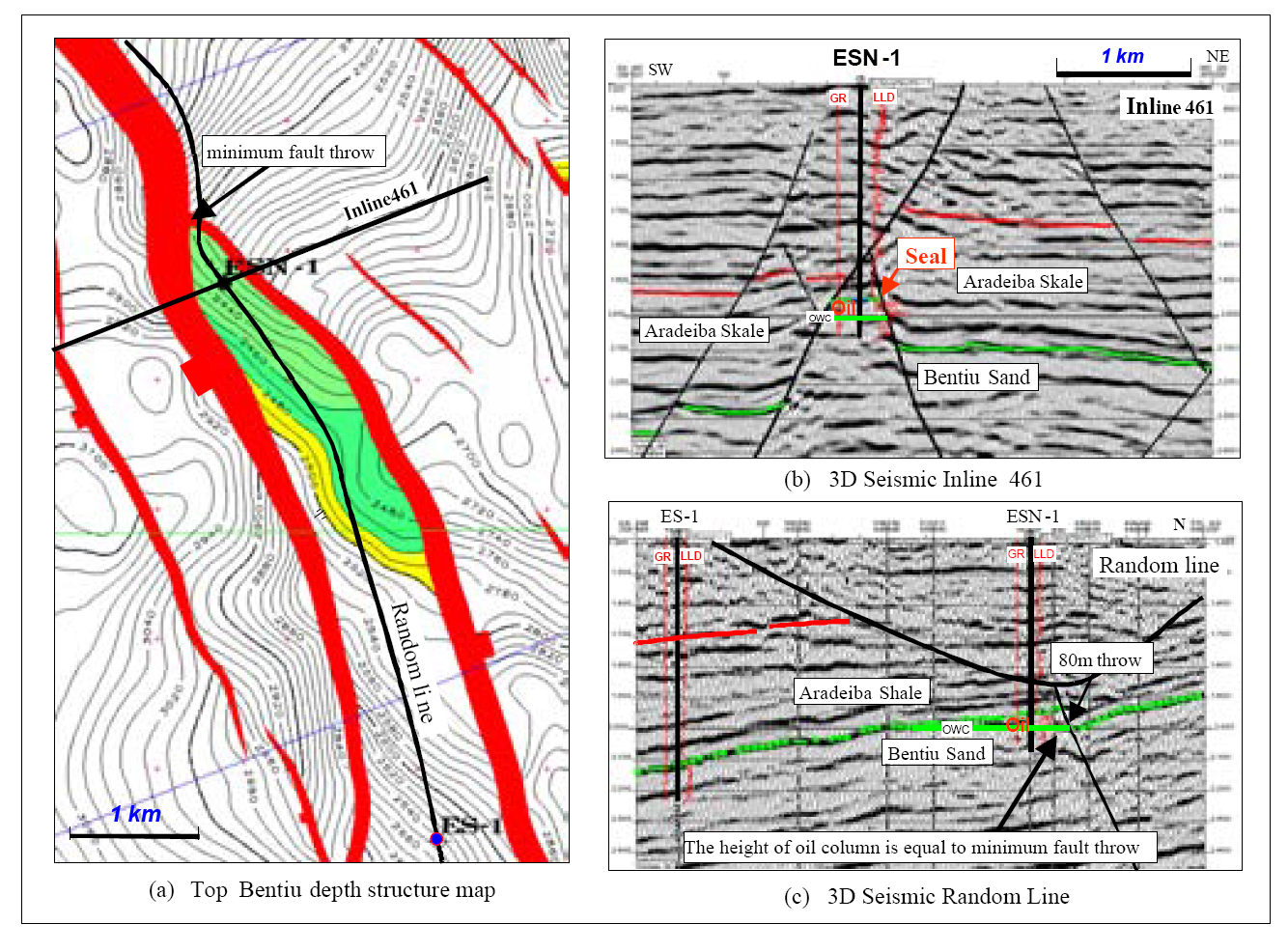

Figure 6. Another excellent fault-seal example. (a) Oil column is controlled by the fault throw in the northern part. (b) The thick (approximately 400 m) massive Aradeiba Shale provided good top and lateral seal for Bentiu reservoir. (c) 3D random section illustrates that the oil column is nearly equal to minimum fault throw (80 m) at which point sand is juxtaposed sand.
